Electro-Voice ETX-35P 15” Three-Way Active Speaker with 15" Woofer
About This Product

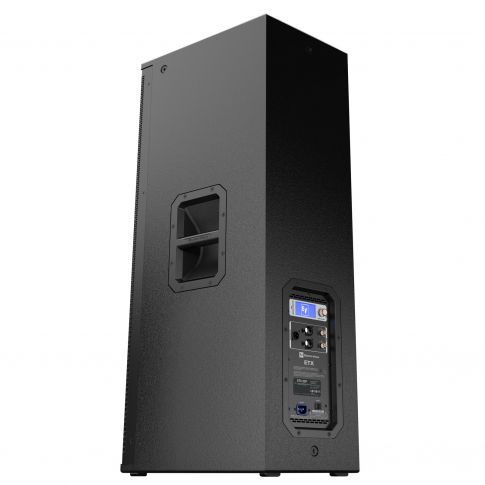

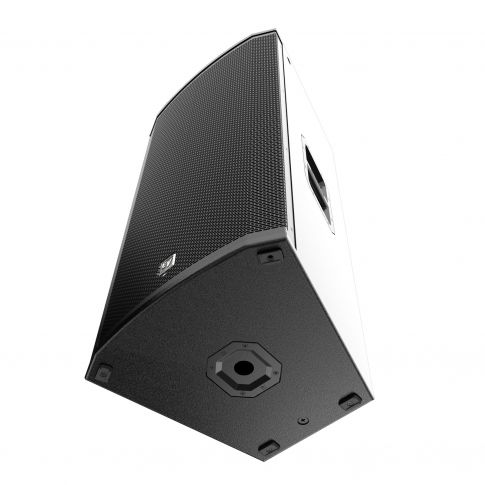

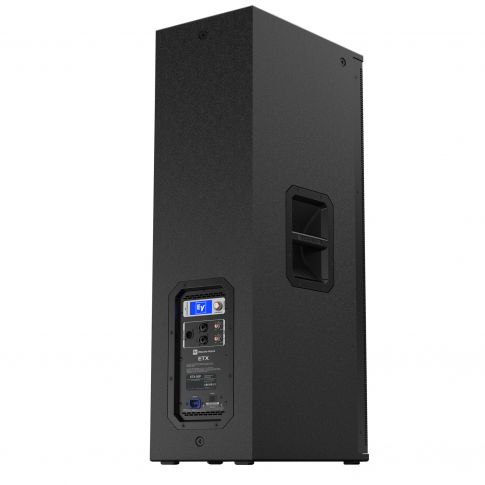

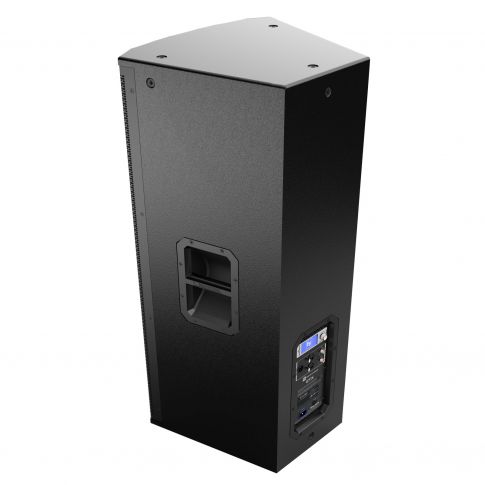

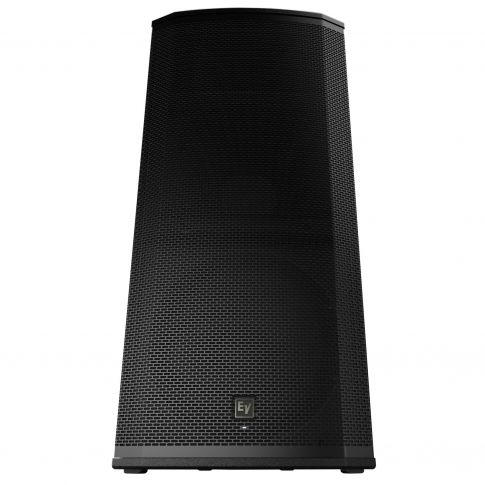

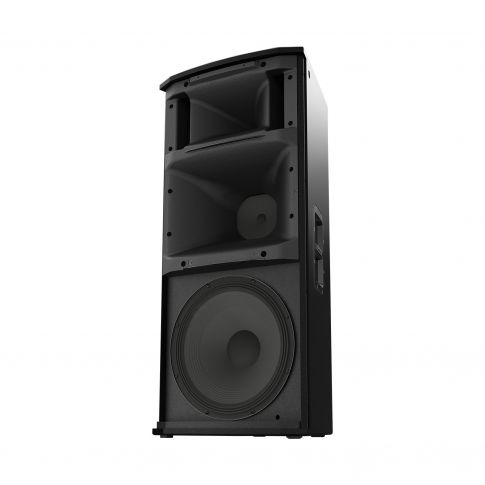

Electro-Voice ETX-35P 15” Three-Way Powered Loudspeaker
Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
- 15-inch LF SMX woofer.
- 6.5-inch MF driver.
- 1.25-inch HF titanium compression driver.
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP.
- 136 dB peak SPL.
Electro-Voice ETX-35P Specifications
|Frequency Range||38 Hz – 20 kHz|
|Maximum SPL||136 peak dB|
|Power Consumption||100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A|
|Power Rating||2000 W|
|Frequency Response||48 Hz – 20 kHz|
|Coverage (Nominal -6 dB) H||60 °|
|Coverage (Nominal -6 dB) V||40 °|
|LF Transducer||SMX2151 380 mm (15 in)|
|MF Transducer||EVS-6C 6.5-in midbass driver|
|HF Transducer||DH3-B 1.25-in titanium compression driver|
|Crossover Frequency||700 Hz, 2900 Hz|
|Connector Type||(2) XLR/TRS combo jack and (1) XLR link output|
|Enclosure Material||18-mm, 13-ply birch plywood with EVCoat|
|Grill||16AWG steel with powdercoat|
|Suspension||(8) M10 suspension points|
|Height||1023 mm (40.28")|
|Width||469 mm (18.46")|
|Depth||426 mm (16.77")|
|Weight Net||41.7 kg (91.93 lbs)|
|Shipping Weight||46.8 kg (103.18 lbs)|
The Electro-Voice ETX-35P Box Includes:
(1) Electro-Voice ETX-35P Powered Loudspeaker
(1) Power Cord
(1) User Guide
