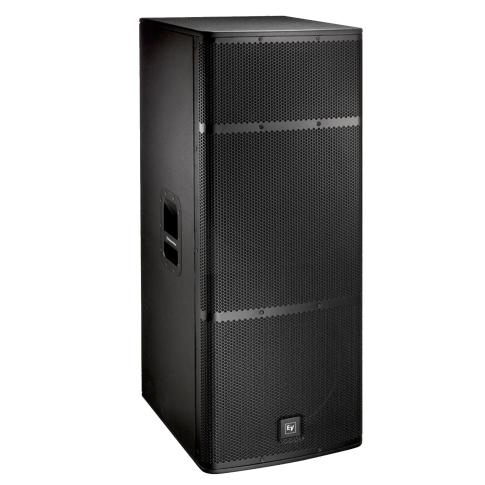

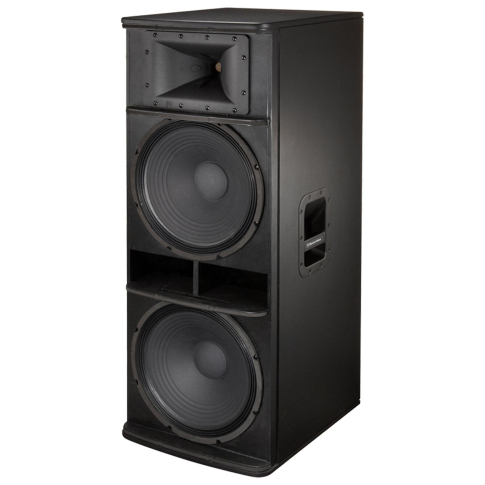

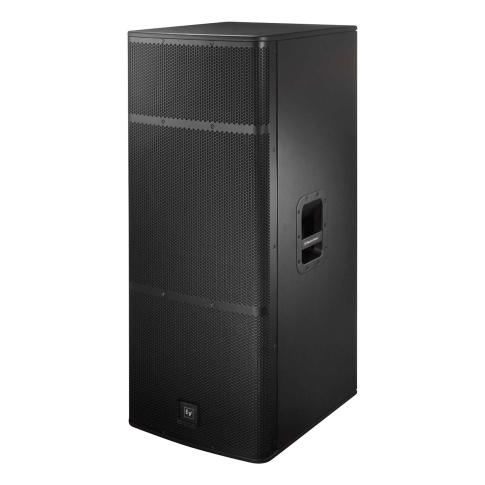

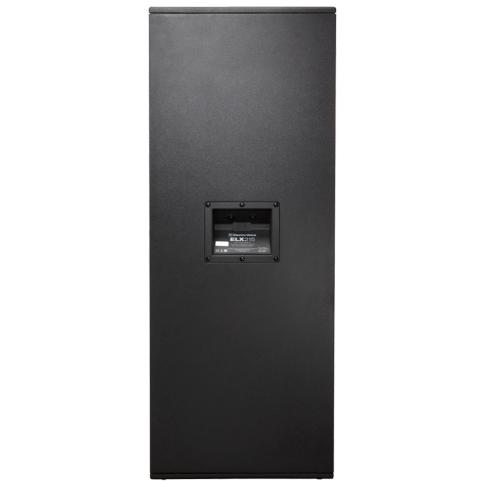

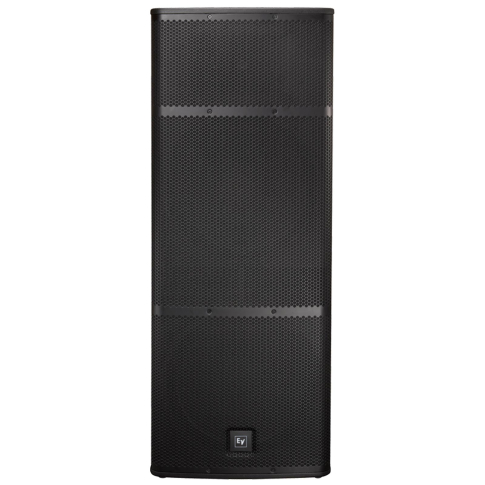

Electro-Voice ELX215 Dual 15-Inch 2-Way Full-Range Speaker
About This Product
This twin woofer configuration delivers real low-end punch — ideal for applications that demand high-volume output and an ultra-wide frequency response from a single cabinet.
Electro-Voice ELX215 Features:- High-volume punch and ultra-wide frequency response.
- Ideal for mains.
- Two EVS-15K woofers for extended LF.
- 1.5-inch DH-1K titanium HF compression driver.
- 38 Hz – 20 kHz frequency range.
- 90° x 50° coverage-pattern waveguide .
- 137 dB max SPL.
- Power handling: 600 W continuous, 2400 W peak .
- Braced 15mm plywood enclosure.
- Black textured finish Dual 15-inch two-way full-range loudspeaker.
Electro-Voice ELX215 Specifications
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 dB |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Color | Black |
| Coverage (Nominal -6 dB) | Omnidirectional |
| Speaker Type | Full-range, mid-high, two-way |
| Woofer Size | 381 mm (15") |
| Frequency Response (-3 dB) | 62 - 18000 Hz |
| Frequency Response (-10 dB) | 38 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 35 Hz |
| Max. SPL/1m (calc) | 137 dB |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 50 ° |
| System Power Handling (Continuous/Program/Peak) | 600//2400 Watts |
| LF Transducer | (2) EVS-15K, 381mm (15") Woofers |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Crossover Frequency | 1.7 k Hz |
| Nominal Impedance (Passive) | 4 Ω |
| Minimum Impedance | 3.7 Ω |
| Connector Type | Parallel Neutrik® NL4 |
| Grill | 18GA Steel with Black Powdercoat |
| Height | 1154 mm (45.43") |
| Width | 432 mm (17.01") |
| Depth | 501 mm (19.72") |
| Weight Net | 40.7 kg (89.73 lbs) |
| Shipping Weight | 52 kg (114.64 lbs) |
The ELX215 Box Includes:
(1) Electro-Voice ELX215 Dual 15-Inch Two-Way Full-Range Speaker
