Be the first to review this product
SKU
ELX200-12SP-W
$799.00
Item Backordered
Expected November 30, 2024
ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting. The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
Wireless control and monitoring via the new Bluetooth QuickSmartMobile App* Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Perfect for both portable and installed applications. Next-generation enclosures offer a step up in both styling and build quality. Full-range models feature lightweight, compact composite enclosures with internal reinforcement, designed to minimize resonance and increase rigidity and strength. With the lightest 18-inch wood powered sub on the market, and a stunning 10-inch top / 12-inch sub compact combo available to serve smaller venues, there are options available for every application. Professional-grade hardware includes three M10 threaded suspension points for forged eyebolts, integrated pole-mounts, and our proven three-handle design for easy lifting. Heavyweight performance in a lightweight package. Though ELX200 is easy to carry, its tough construction and components ensure legendary EV durability and sound quality, night after night. System reliability is verified with over 500 hours of abuse and endurance testing - far above and beyond industry norms. Super-efficient Class-D power amplifiers deliver distortion-free maximum SPLs utilizing high-sensitivity transducers - all designed and engineered by Electro-Voice. QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD. Easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets, sub/top system-match crossovers, input level control and metering, and master volume control to optimize gain structure. Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance. The design allows for a larger waveguide, which is placed forward in the enclosure to time-align the woofer and the tweeter, providing exceptionally precise and consistent coverage - all with deeper, tighter bass response.
* Bluetooth is available in select countries.
**All are available in powered and passive versions.
Wireless control and monitoring via the new Bluetooth QuickSmartMobile App* Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Perfect for both portable and installed applications. Next-generation enclosures offer a step up in both styling and build quality. Full-range models feature lightweight, compact composite enclosures with internal reinforcement, designed to minimize resonance and increase rigidity and strength. With the lightest 18-inch wood powered sub on the market, and a stunning 10-inch top / 12-inch sub compact combo available to serve smaller venues, there are options available for every application. Professional-grade hardware includes three M10 threaded suspension points for forged eyebolts, integrated pole-mounts, and our proven three-handle design for easy lifting. Heavyweight performance in a lightweight package. Though ELX200 is easy to carry, its tough construction and components ensure legendary EV durability and sound quality, night after night. System reliability is verified with over 500 hours of abuse and endurance testing - far above and beyond industry norms. Super-efficient Class-D power amplifiers deliver distortion-free maximum SPLs utilizing high-sensitivity transducers - all designed and engineered by Electro-Voice. QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD. Easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets, sub/top system-match crossovers, input level control and metering, and master volume control to optimize gain structure. Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance. The design allows for a larger waveguide, which is placed forward in the enclosure to time-align the woofer and the tweeter, providing exceptionally precise and consistent coverage - all with deeper, tighter bass response.
* Bluetooth is available in select countries.
**All are available in powered and passive versions.

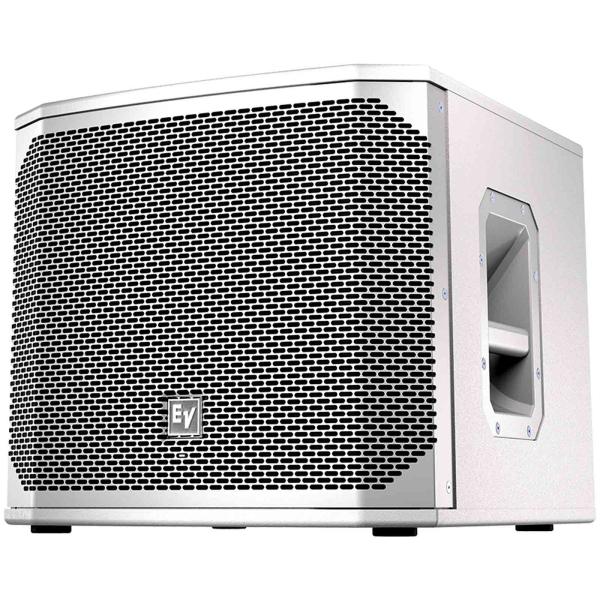

Electro-Voice ELX200-12SP-W 12" Powered Subwoofer in White Features:
- EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
- QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
- System reliability verified with over 500 hours of abuse and endurance testing.
- Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Electro-Voice ELX200-12SP-W Specifications:
Available Color | White |
Connector Type | (2) XLR/TRS combo jacks and (2) XLR link outputs |
Depth | 457 mm / 18" |
Enclosure Material | 15 mm plywood with EVCoat |
Family | ELX200 |
Frequency Range (-10 dB) | 41 Hz – 165 Hz |
Frequency Response (-3 dB) | 49 Hz – 135 Hz Hz |
Grill | 18 AWG steel with powdercoat |
Height | 397 mm / 15.8" |
LF Transducer | EVS-12L 300 mm (12 in) |
Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz |
Max. SPL/1m (calc) | 129 dB |
Power Consumption | 100 - 240 V~, 50 - 60 Hz, 1.8A |
Power Rating | 1200 W |
Powered or Passive | Powered |
Shipping Weight | 22.3 kg / 42.2 lbs. |
Speaker Type | Subwoofer |
Weight Net | 19.1 kg / 49.2 lbs. |
Width | 445 mm / 17.5" |
Woofer Size | 12 inch |
Each ELX200-12SP-W Retail Box Includes:
(1) Electro-Voice ELX200-12SP-W 12" Powered Subwoofer in White
