Electro-Voice EKX-15SP 15" Powered Subwoofer Package
About This Product
Electro-Voice EKX-15SP 15” Powered Subwoofer
The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology – all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
EV-engineered components, Signal Synchronized Transducers™ (SST) waveguide design, and Class D amplifiers (up to 1500 W) coupled with QuickSmartDSP all work together to provide precise coverage and superior sound quality at high SPLs. EV’s award-winning industrial design – with robust wood enclosures and durable EVCoat finish – ensures that EKX speakers look as great as they sound.
• QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
• Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
• High-efficiency 1300 W Class D power amplifier delivers up to 133 dB peak SPL on the EKX-15SP utilizing high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.
On-Stage SS7746 Subwoofer Pole with M20 Thread
More and more pole mount subwoofers are hitting the market with M20 threaded pole mounts instead of the older 1 3/8” socket design. The advantage is obvious: no tilt and wobble! The SS7746 is designed for this new breed of subwoofers. Its all-steel shafts telescope from 30"-54", held tight with a friction locking knob backed up by a captive steel security pin. The lower shaft features 41 mm diameter steel tubing terminated with a zinc plated threaded lug. The upper shaft is sized to fit satellite speakers with standard 1 3/8” pole mounts.
On-Stage SS7746 Features:
• M20 threading eliminated wobble at subwoofer.
• All-steel shaft telescopes from 30”-54”.
• Captive steel security pin.
• Zinc plated threaded lug.
• Upper shaft is sized to fit satellite speakers with standard 1 3/8” pole mounts.
Ultimate Support JS-KC90 Karma Cart Series Adjustable Professional Equipment Cart
The Karma Cart Series from JamStands by Ultimate Support redefines the concept that good things happen to hard working musicians and sound engineers! If you've ever hauled a heavy guitar amp, set of speakers, drum kit, or an 88-note keyboard, you know how wonderful the invention of the wheel can be. The Karma Cart Series offers not only a set of wheels and platform but it's a reconfigurable tool that transforms into eight different equipment carts and hand trucks with very little effort!
• Medium sized Karma Cart
• Easily transforms into eight different configurations
• Transport your PA system, guitars, DJ equipment, and more
• Wheels are made of a solid material that will not go flat
• Locking front caster for secure loading and unloading
• Strong, light-weight steel design that is powered coated for protection
• Easy to fold up for convenient transport and storage
• Weight capacity of 300 lbs.
Electro-Voice EKX-15SP Specifications
|Connector Type||(2) XLR/TRS combo jacks and (2) XLR link outputs|
|Enclosure Material||15 mm, plywood with EVCoat|
|Frequency Response (-10 dB)||40 Hz - 180 Hz Hz Half Space Measurement|
|Frequency Response (-3 dB)||45 Hz - 150 Hz Hz Half Space Measurement|
|Grill||18 AWG steel with powdercoat|
|LF Transducer||EVS-15C 381 mm (15 in)|
|Low Pass Frequency||Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz|
|Maximum SPL||133 dB peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output|
|Power Consumption||1.8 A Current rating is 1/8 power|
|Power Rating||1300 W|
|Shipping Weight||32.6 kg (71.87 lbs)|
|Height||11RU 455 mm (17.91")|
|Width||530 mm (20.87")|
|Depth||551 mm (21.69")|
|Weight Net||26.2 kg (57.76 lbs)|
Ultimate Support JS-KC90 Specifications
Product Name: JS-KC90
Part Number: 17436
Capacity: 300 lbs. (136 kg)
Configurations: 8 Variations
Finish: Powder Coat, Black
Length: 27.5" - 44.25" (699mm - 1124mm)
Width: 17" (432mm)
Height: 24" (610mm)
Weight: 26 lbs. (11.8 kg)

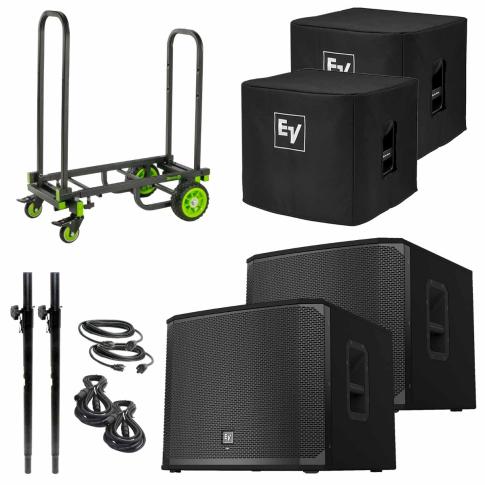

This Package Includes:(2) Electro-Voice EKX-15SP 15” Powered Subwoofers
(2) Electro-Voice EKX-15SP-CVR Padded Speaker Covers
(2) 20FT Sure-Fit XLR Connecting Cables
(2) IDJNow Black 10FT 16 Gauge AC Extension Cords
(2) On-Stage SS7746 Subwoofer Poles with M20 Thread
(1) Ultimate Support JS-KC90 Karma Cart Series Adjustable Professional Equipment Cart
Each EV EKX-15SP Box Includes:(1) Electro-Voice EKX-15SP 15” Powered Subwoofer
(1) Power Cord
(1) User Guide
