Electro-Voice EKX-15S 15" Passive Subwoofer
About This Product
The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology – all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
EV-engineered components, Signal Synchronized Transducers (SST) waveguide design, and Class D amplifiers (up to 1500 W) coupled with QuickSmartDSP all work together to provide precise coverage and superior sound quality at high SPLs. EV’s award-winning industrial design – with robust wood enclosures and durable EVCoat finish – ensures that EKX speakers look as great as they sound.EKX-15S Features:
- 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing high sensitivity transducers designed and engineered by EV.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Large slot ports for low distortion and excellent bass extension.
- Metal grille reinforcement bar (two bars on the EKX-18S).
- M20 threaded pole mount plate.
Electro-Voice EKX-15S Specifications
|Axial Sensitivity (SPL, 1 W @ 1 m)||95 dB|
|Connector Type||Dual NL4|
|Coverage (Nominal -6 dB) H||90 °|
|Coverage (Nominal -6 dB) V||60 °|
|Enclosure Material||15 mm, plywood with EVCoat|
|Frequency Response (-10 dB)||40 Hz - 300 Hz Half Space Measurement|
|Frequency Response (-3 dB)||60 Hz - 100 Hz Half Space Measurement|
|Grill||18 AWG steel with powdercoat|
|LF Transducer||EVS-15C 381 mm (15 in)|
|Maximum SPL||133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating|
|Minimum Impedance||7.5 Ω|
|Nominal Impedance||8 Ω|
|Power Handling (Continuous / Peak)||400 W/1600 W|
|Recommended High-Pass Frequency||35 Hz|
|Shipping Weight||31.3 kg (69 lbs)|
|Height||11RU 455 mm (17.91")|
|Width||530 mm (20.87")|
|Depth||551 mm (21.69")|
|Weight Net||24.9 kg (54.9 lbs)|

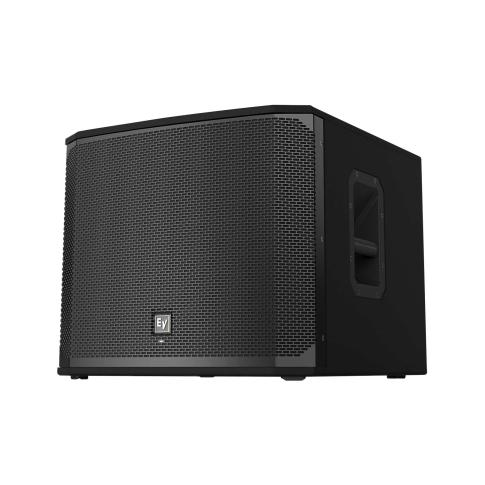

(1) Electro-Voice EKX-15S 15" Passive Subwoofer
