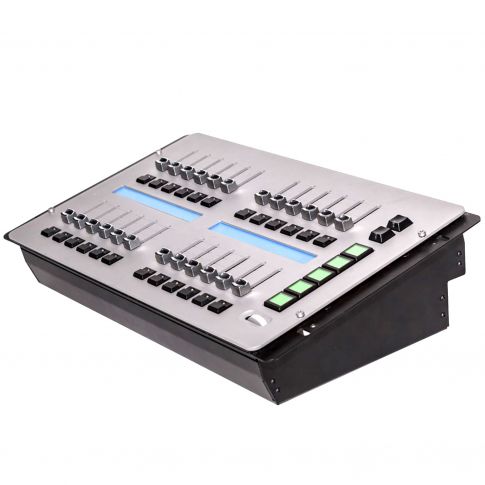

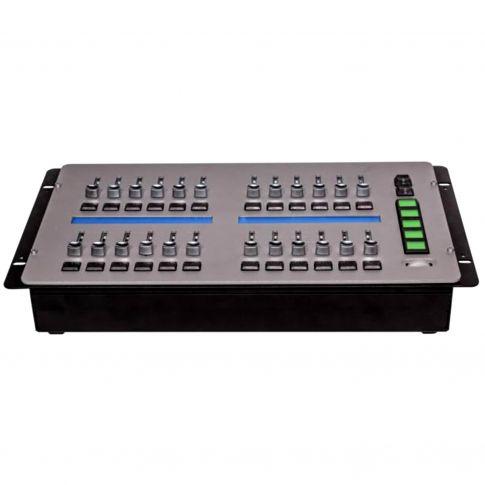

Elation Professional M-Series Submaster Module Lighting Control Console

Elation Professional Submaster Module Specifications:

M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)

Physical
Length: 275 mm (10.9 in.)
Width: 483 mm (19.1 in.)
Height: 128 mm (5.1 in.)
Weight: 4.6 kg (10.2 lbs.)

Control/User Interface
24 x non-motorized faders with single function button (every cuelist type supported)
40-character display for labeling
5 x LCD navigation buttons with scroll wheel

Connections
M-Series Module link USB: Neutrik locking RJ45 Ethercon sockets
USB input: USB device socket
USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket

Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A

Approvals
EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
CE

Each Submaster Module Retail Box Includes:
(1) Elation Professional M-Series Submaster Module Lighting Control Console
(1) 1.5 m power cable, 3-pin IEC: P/N 11501012
(1) Ethercon patch cable: P/N 11840144
(1) USB cable: P/N 11840066
