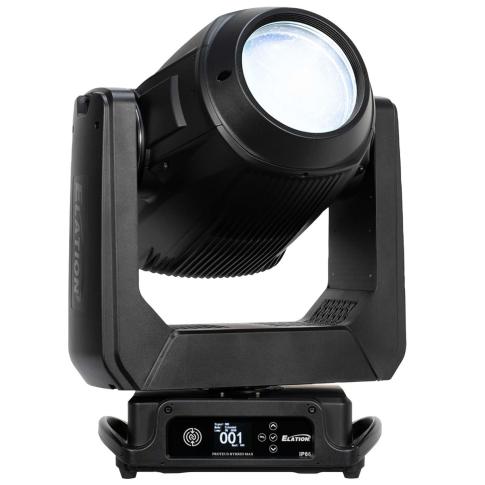

Elation Professional PROTEUS HYBRID MAX 550W Discharge IP66 Beam/Spot/Wash Hybrid Fixture

SKU #: PROTEUS-HYBRID-MAX
$11,385.00
As low as $1139/mo or 0% APR with Affirm Logo
Limited Supply - Contact Us

Questions? Call 1-800-355-7746 or Chat below

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The PROTEUS HYBRID MAX combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. PROTEUS HYBRID MAX is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp. Rated at 550W and up to 4,000 hours smart lamp life the HYBRID MAX includes CMY and variable CTO plus a full complement of projection and effects options. Four prisms on two planes, dual frosts plus dual gobo wheel and three tracks of animation patterns round out the comprehensive FX package in a compact and lightweight housing. For extra impact the fixture features a fast continuous pan rotation. Delivering 22,000 lumens from its large 170mm front aperture, the PROTEUS HYBRID MAX has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.

The PROTEUS HYBRID MAX includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures the PROTEUS HYBRID MAX operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated. The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.

Elation Professional PROTEUS HYBRID MAX IP66 Hybrid Fixture Features:

  • Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture.
  • Flex Lamp Technology 550W plus Smart Hibernation with up to 4,000 Hour Lamp Life.
  • Full CMY Color Mixing System, Variable CTO, Color Wheel.
  • Creative FX Package: 8 Rotating and 16 Static Gobos, Dual and Single-Track Animation, Iris, 4x Prism on Dual Planes, 2x Frost.
  • Ultra-Fast Zoom.
  • 360° Endless Pan Motion.
  • IP66 rating protects from water and dirt .
  • Sky Motion System for powerful searchlight and skytracker animations.

Elation Professional PROTEUS HYBRID MAX Product Specifications:

Source:
Philips MSD Platinum 500 Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life
Test lab conditions.
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

Photometric Data:
22,000+ Lumen Total Fixture Output
Zoom Range 1.8° - 45°

Effects:
Beam, Spot and Wash Modes
Motorized Zoom
Dual Frost Filter for Light Frost/ Full Wash
4 Prisms on Dual Planes
Iris
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°

Color:
Full CMY Color Mixing System
Variable CTO
16 Position Color Wheel

Gobos:
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
16 Static-Stamped Metal Gobos plus Animation Track
Dual Track Animation Wheel

Control/Connections:
2 DMX Channel Modes (32, 43)
(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
IP66 5pin DMX In/Out
IP66 RJ45 Ethernet In/Out
IP66 Locking Power Cable In/Out

Size/Weight:
Length: 18.2" (462mm)
Width: 18.8" (477mm)
Height: 26.65" (677mm)
Weight: 76 lbs. (34.5 kg)

Electrical/Thermal:
AC 100-240V 50/60Hz
800 W Max Power Consumption
-4° to 113°F (-20°C to 45°C)

Approvals/Ratings:
CE | cETLus | IP66

Fixture Libraries:
ONYX
GDTF
GRANDMA2

Each PROTEUS HYBRID MAX Retail Box Includes:

(1) Elation Professional PROTEUS HYBRID MAX 550W Discharge IP66 Beam/Spot/Wash Hybrid Fixture
(2) Omega Brackets
(1) IP66 Rated 5-pin DMX Cable
(1) IP66 Rated RJ45 Data Cable
(1) IP66 Locking Power Cable
