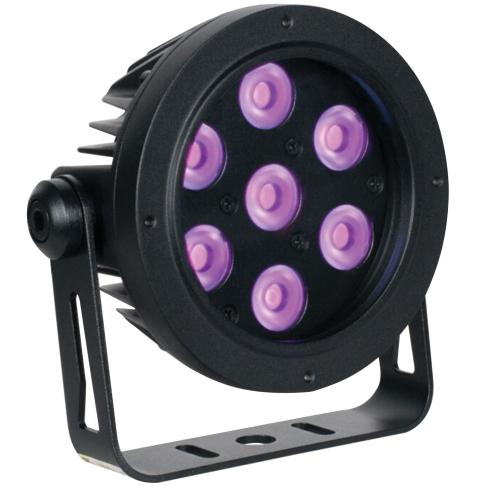

Elation Professional Prisma Mini Par 20 IP65 Rated Exterior UV Wash Par Luminaire

SKU
PRISMA-MINI-PAR-20
$264.00

In Stock - Ships in 3-5 Days

Most orders placed by 2pm ET ship in 3-5 business days

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

6000+ Reviews

95%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

PRISMA MINI PAR 20 is is an IP65 rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle. Powered by the PRISMA DRIVER 8, features include an adjustable mounting yoke, a durable aluminum housing, and a 6 ft (1.8m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.

Elation Professional Prisma Mini Par 20 IP65 UV Wash Features:

  • IP65 Rated Exterior High-Power UV Wash Par Luminaire.
  • 20 Degree Narrow Beam Angle.
  • 365nm True UV Peak Wavelength.
  • Zero Visible Light Output.
  • IP Rated Power/Data Pigtail Cable Attached.

Elation Professional Prisma Mini Par 20 Specifications:
Source
(7) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life
Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

Effects
High Speed Electronic Strobe
Variable Dimming Curve Modes

Construction
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Yoke

Control
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

Connections
6 ft (1.8m) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
With Wired Digital Communication Network

Size / Weight
Length: 5.66 in. (144mm)
Width: 2.76 in. (70.15mm)
Vertical Height: 5.6 in. (143.16mm)
Weight: 2.0 lbs. (0.9kg)

Electrical
AC100-240V 50-60Hz
Max Power Consumption pending

Thermal
14°F to 113°F (-10°C to 20°C)
Air Cooled

Approvals / Ratings
CE | cETLus | IP65

Each Prisma Mini Par 20 Retail Box Includes:
(1) Elation Professional Prisma Mini Par 20 IP65 Rated Exterior UV Wash Par Luminaire
(1) Adjustable Mounting Yoke
(1) Phoenix Connector
(2) Positive Wire Tip Sheath
(2) Negative Wire Tip Sheath
