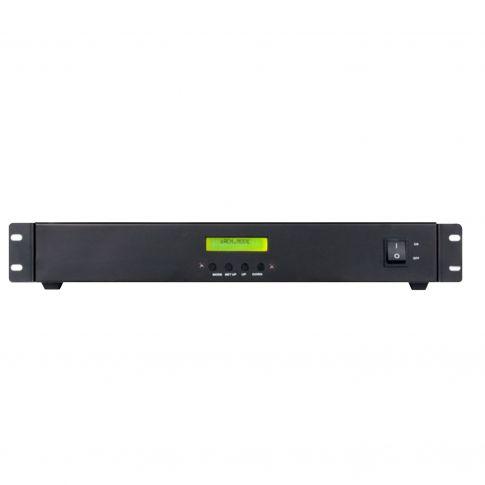

Pixel Driver 4000 is designed specifically for the Elation Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN (streaming ACN) protocols.

The Pixel Driver 4000 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 2 to 50 meters). The Pixel Driver 4000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Elation Professional Pixel Driver 4000 Features:

  • Power/Data Supply for Elation Pixel Bar 30IP, 60IP, and 120IP.
  • Simple On-Board Manual Dimming and Strobe Control.
  • Kling-Net, Art-Net, and sACN Protocol Support.
  • 4,080 Max Pixel Mapping via Kling-Net.
  • 680 Max Pixel Mapping via Art-Net and sACN.
  • 19-inch Rack or Truss Mounting Options.
  • Multi Unit Linking via RJ45 Ethernet.
  • (4) Outputs.
  • Power/Data Combo Cables (sold separately.)

Elation Professional Pixel Driver 4000 Specifications:

Control / Connections:
Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
(2) RJ45 Ethernet Ports
(4) 4pin Power/Data Outputs

Size / Weight:
Length: 16.7" (425mm)
Width: 11.9" (301mm)
Height: 2.9" (74mm)
Weight: 9.5 lbs. (4.3kg)

AC 100-240V - 50/60HZ
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)

CE | cETLus

Each Pixel Driver 4000 Retail Box Includes:
(1) Elation Professional Pixel Driver 4000 Lighting Control
(1) 19" Rack Mount Kit
(1) powerCON Power Cable
(1) 3m (9.8 ft) 4pin 16AWG Power/Data Cable
