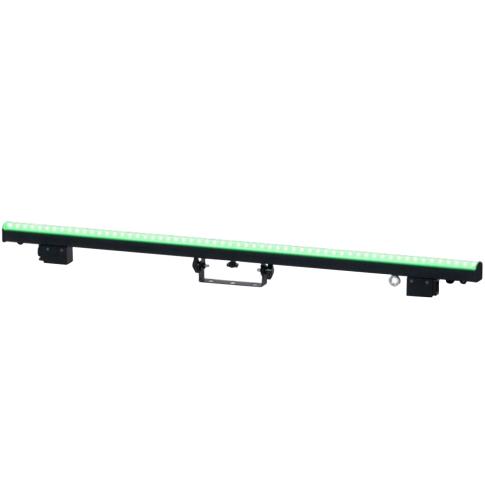

Elation Professional PIXEL BAR 60IP Outdoor Rated IP65 LED Lighting Bar Featuring 60x Tri-Color RGB SMD LEDs
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Easy and versatile control options are handled by the Pixel Driver 4000 (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 meters.
Elation Professional PIXEL BAR 60IP IP65 LED Lighting Bar Features:
- Outdoor IP65 Rated.
- (60) RGB SMD LEDs | 1 meter / 3.3 feet.
- 16mm Pixel Pitch | 44,000Hz PWM.
- Flicker Free Operation for Broadcast TV and FILM.
- Magnetic End Caps - Seamless End-to-End Spacing.
- Integrated Adjustable Mounting Bracket.
- Square and Rounded Frosted Lens Included.
- 2ft (0.6m) Power/Data Jumper Cable included.
- Proprietary IP Rated Power/Data Combo Cables.
- Available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths.
Elation PIXEL BAR 60IP Specifications:
Source
0.2 SMD RGB 3-in-1 LEDs
Color Resolution: 8 bits per color (24 but per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation): 44,000Hz
Connections
4pin Power/Data In/Out
Size/Weight
Length: 38.0" (967mm)
Width: 1.3" (34mm)
Height: 3.3" (83mm)
Weight: 2.6 lbs. (1.2kg)
Electrical
Max Power Consumption: 12W
Approvals
CE | cETLus | IP65
(1) Elation Professional PIXEL BAR 60IP Outdoor Rated IP65 LED Lighting Bar Featuring 60x Tri-Color RGB SMD LEDs
(1) 2 ft (0.6m) 4pin 16AWG Power/Data Jumper Cable
(1) Frosted Square Lens Cover
(1) Frosted Round Lens Cover
