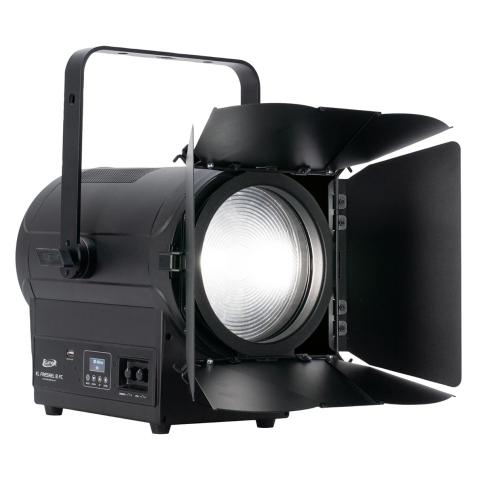

Elation Professional KL FRESNEL 8 FC Full-Color-Spectrum RGBMA LED Fixture

SKU
KL-FRESNEL-8-FC
$2,068.00

In Stock - Ships in 3-5 Days

Most orders placed by 2pm ET ship in 3-5 business days

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

6000+ Reviews

95%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The KL FRESNEL 8 FC is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels. The KL FRESNEL 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a motorized Zoom range of 10° to 50°.

Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units. The KL FRESNEL 8 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Zoom, Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

Elation Professional KL FRESNEL 8 FC RGBMA LED Features:

  • RGBMA LED Engine.
  • Dynamic White + Full Spectrum Color Control.
  • 18,000 Total Fixture Lumen Output.
  • 10° to 50° Wide Motorized Zoom.
  • Stand-Alone control with 2 Encoders and LED Display.
  • Smooth 16-bit Selectable Dimming Modes and Curves.
  • LED Refresh Rate Adjustment.
  • Flicker Free Operation for TV and FILM.
  • RDM (Remote Device Management).
  • 8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8" - 28mm) included.

Elation Professional KL FRESNEL 8 FC Product Specifications:

Source:
6500K RGBMA LED Engine
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data:
18,000 Total Lumen Output
CRI 94.5
TLCI 94
Zoom Range 10° - 50°
Beam Angle 10.4° - 50.8°
Field Angle 20.6° - 66.1°

Effects:
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

Color:
RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

Control/Connections:
6 DMX Channel Modes (1 to 18 channels)
Manual and DMX Controlled Dimmer, Color and Zoom
Dual Rotary Dials
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection

Size/Weight:
Length: 15.1" (382.5mm)
Width: 12.9" (326.5mm)
Vertical Height: 17.9" (455mm)
Weight: 23.15 lbs. (10.5kg)

Electrical/Thermal:
AC 100-240V - 50/60Hz
514W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1752.74

Approvals/Ratings:
CE | cETLus | IP20

Each KL FRESNEL 8 FC Retail Box Includes:

(1) Elation Professional KL FRESNEL 8 FC Full-Color-Spectrum RGBMA LED Fixture
(1) Gel Frame and Rotating 8-leaf Barn Doors
(1) Junior Pin (1 1/8" - 28mm)
(1) IP65 Locking Power Cable
