Be the first to review this product
Expected December 31, 2024

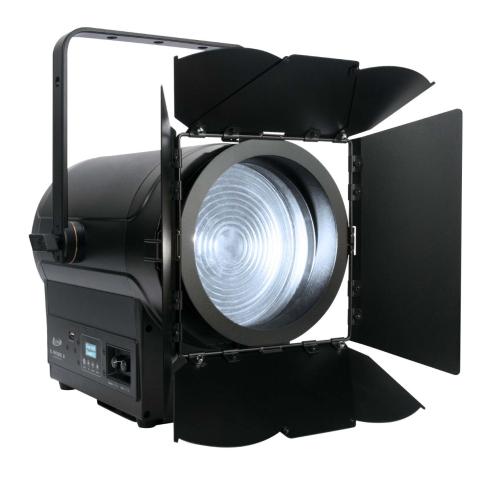

KL FRESNEL 8 CW is a 350W 5,600K >97CRI Cool White LED Fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11° to 56° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).
Elation Professional KL FRESNEL 8 CW Cool White Fresnel Features:
- 5,600K Cool White LED Fresnel Luminaire.
- 350W Single Source LED.
- Manual and DMX Controlled Dimming.
- Quick Single Press Light Output for Focusing.
- 11° - 56° Motorized Zoom.
- Including 8-Leaf Barn Doors and Gel Frame Holder.
- Adjustable Refresh Frequency.
- Silent Operation.
- Variable Dimming Curves, Dim Modes and Dimming Delays.
- Flicker Free Operation for Broadcast TV and Film.
- RDM (Remote Device Management).
- Gel Frame and Rotating Barn Doors (included).
- 3 Clamp Position Adjustable Mounting Yoke.
Elation Professional KL FRESNEL 8 CW Product Specifications:
Source:
350W >96CRI 3,000K Warm White LED
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data:
up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 9.8' (3m) (Min. Zoom)
1462 LUX 136 FC @ 9.8' (3m) (Max. Zoom)
Zoom Range 11° - 56°
Beam Angle 11° - 56.2°
Field Angle 17.9° - 77°
Effects:
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color:
5,600K Cool White LED
Control/Connections:
Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking In/Out Power Connection
With Wired Digital Communication Network
Size/Weight:
Length: 17.5" (445mm)
Width: 12.89" (327.5mm)
Vertical Height: 17.95" (456mm)
Weight: 28.0 lbs. (12.7kg)
Electrical/Thermal:
AC 100-240V - 50/60Hz
430W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
Approvals/Ratings:
CE | cETLus | IP20
Each KL FRESNEL 8 CW Retail Box Includes:
(1) Elation Professional KL FRESNEL 8 CW 350W 5,600K >97CRI Cool White LED Fresnel Luminaire
(1) Gel Frame
(1) Set of Rotating Barn Doors
(1) IP65 Locking Power Cable
