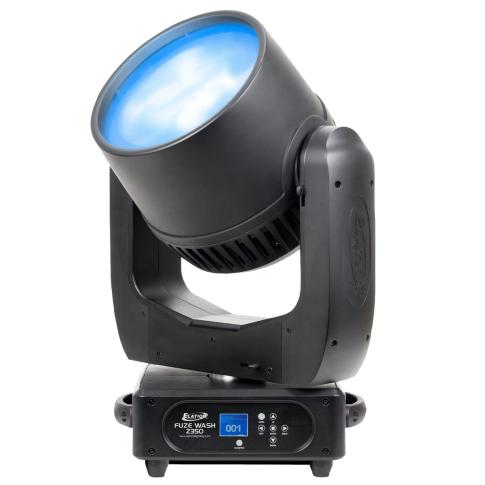

The FUZE WASH Z350 is a single source par moving head luminaire featuring a 350W Quad Color RGBW COB LED, 6° to 46° motorized zoom, pan and tilt, RGBW color mixing, variable dimming curve and strobe effects, DMX and RDM (remote device management) protocol support, DMX and Locking Power Cable in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Elation Professional FUZE WASH Z350 Moving Head Wash Features:
- 350W RGBW COB LED Moving Head Wash Luminaire.
- RGBW Color Mixing.
- 6° to 46° Wide Motorized Zoom Range.
- Variable Dimming Curves.
- Multiple Unit Power Linking.
- RDM (Remote Device Management).
- Flicker Free Operation for TV and FILM.
Elation Professional FUZE WASH Z350 Product Specifications:
Source:
350W RGBW COB LED
100,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
60,280 LUX 5,600 FC @6.6' (2m) (6° Full ON)
3,735 LUX 347 FC @6.6' (2m) (46° Full ON)
Color:
RGBW
Effects:
RGBW Color Mixing
6° to 46° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Pan Angle: 540°/630°
Tilt Angle: 250°
Control/Connections:
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network
Size/Weight:
Length: 16.3" (414mm)
Width: 11.6" (294mm)
Vertical Height: 22.7" (578mm)
Weight: 45 lbs. (20.4 kg)
Electrical/Thermal:
AC 110-240V - 50/60Hz
399W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1360.59
Approvals/Ratings:
CE | cETLus | IP30
Each FUZE WASH Z350 Retail Box Includes:
(1) Elation Professional FUZE WASH Z350 350W RGBW COB LED Moving Head Wash Luminaire
(1) Power Cable
(2) Omega Brackets
