Elation Professional Pixel Driver 170 Professional Tape Driver for Tape 16IP and Pixel Tape 40IP
SKU
PIX170
In Stock - Ships in 3-5 Days
Most orders placed by 2pm ET ship in only 3-5 days (business days only).
Free Shipping on most orders with minimum purchase of $50 or more for a limited time.
Ground shipments only in the lower 48 contiguous United States.
Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.
Any questions, please call 1-800-355-7746 during normal business hours.
Offer subject to change or termination without notice. Not responsible for typographical errors.
The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.
I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700
I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

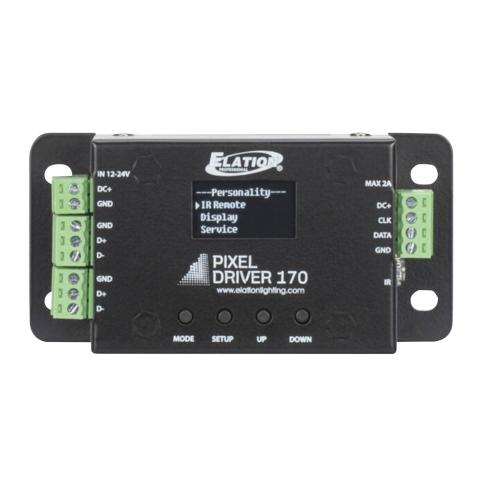

Pixel Driver 170 is a professional tape driver specifically designed for the Elation Pixel Tape 16IP and Pixel Tape 40IP. This driver provides simple and easy control options including a 3-button OLED Display, EL IR Remote (included), and one full universe of DMX control (170 pixels). The Pixel Driver 170 features an easy-to-use OLED display, Pixel grouping, separate 3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output, and a 2pin terminal block for 12-24VDC power IN. The unit also includes one PIX-AD3 adapter to connect between LED tape out and Pixel Tape 16IP & Pixel Tape 40IP.
The Pixel Driver 170 is a professional DMX512, 12-24VDC LED tape driver that supports up to one full universe of DMX (170 pixels). Its small compact design allows for easy mounting and integration into any system. It features a 3-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output, and a 2pin terminal block for 12-24VDC power IN.
The Pixel Driver 170 is a professional DMX512, 12-24VDC LED tape driver that supports up to one full universe of DMX (170 pixels). Its small compact design allows for easy mounting and integration into any system. It features a 3-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output, and a 2pin terminal block for 12-24VDC power IN.
Elation Professional Pixel Driver 170 Tape Driver Features:
- Easy to use Handheld IR Remote.
- 10 Built-in Shows (Show 11 randomly plays show 1-10.)
- 11 Preset Colors.
- Show Fade and Speed Control.
- Dimmer Control.
Elation Professional Pixel Driver 170 Product Specifications:
Control / Connections:3-Button OLED Display
1 DMX Universe (170 Pixels)
EL IR Remote (Included)
DMX Input via 3pin Phoenix connector block
DMX Output via 3pin Phoenix connector block
LED Tape Out via 4pin Phoenix connector block
Size / Weight:
Length: 3.98" (101mm)
Width: 1.97" (50mm)
Height: 1.03" (26.2mm)
Weight: 0.29lbs (0.133kgs)
Electrical:
DC Input 12-24VDC, 2A (Requires separate power supply)
48W Max Power Consumption
Approvals / Ratings:
CE | cETL | RoHs
IP20
Each Pixel Driver 170 Retail Box Includes:
(1) Elation Professional Pixel Driver 170 Professional Tape Driver for Tape 16IP and Pixel Tape 40IP(1) EL-IR Remote
(1) 4-pin Cable, 1-meter length
(1) IR Receiver Cable, 1-meter length
