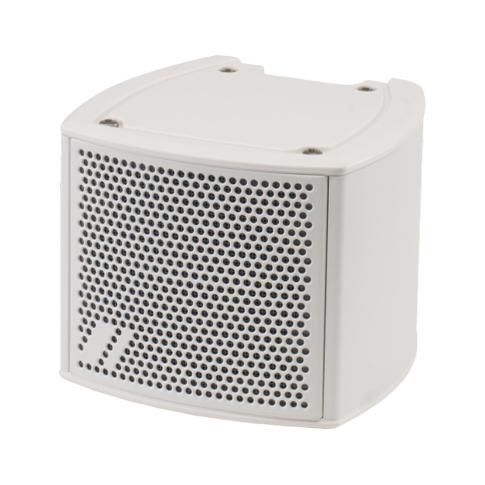

DAS Q-3-TW 1-way Full Range Passive Speaker System
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The systems of the Quantum series have been developed as installation systems with high intelligibility and configurable response, ideal for spaces with complex acoustic conditions and immersive experiences. The Quantum full-range systems can be ordered in any RAL color to discretely combine with the venue decor. It is an ideal series for applications including foreground systems in worship center facilities, museums, hotels, conference centers, shopping centers, stations, airports and music halls of medium or small size, as well as a background systems in theaters and auditoriums.
The Q-3 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment. The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.
DAS Q-3-TW 1-way Full Range Passive Speaker System Features:
- Passive system.
- Extruded aluminum enclosure.
- 1 x 3", 3P full-range speaker.
- Dispersion H x V: 120º x 120º.
- SPL peak: 106 dB.
- Multi-tap 100/70V transformer included.
- Low/high-impedance operation.
- Available in all RAL colors.
DAS Q-3-TW Product Specifications:
| Performance | |
|---|---|
| Frequency Range (-10 dB) | 150 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 120º |
| Vertical Coverage | 120º |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 3.5 W – 7.5 W – 10 W |
| Transformer Taps 100 V | 7.5 W – 15 W – 20 W |
| RMS Power Handling | 20 W |
| Peak Power Handling | 80 W |
| On-axis Sensitivity 1W/1 m | 87 dB SPL |
| Maximum Peak SPL at 1 m | 106 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 4-way Phoenix 2.54 mm |
| Enclosure | |
| Enclosure Construction | Aluminum |
| Color | White |
| IP Rating | IP66 |
| Depth | 125 mm (4,9 in) |
| Dimensions ( H x W x D ) | 105 x 125 x 125 mm 4,1 x 4,9 x 4,9 in |
| Net Weight | 1,6 kg ( 3,5 lb ) |
| Components | |
| MF Driver | 3P |
Each Q-3-TW Retail Box Includes:
(1) DAS Q-3-TW 1-way Full Range Passive Speaker System
(1) Multi-tap 100/70V transformer
