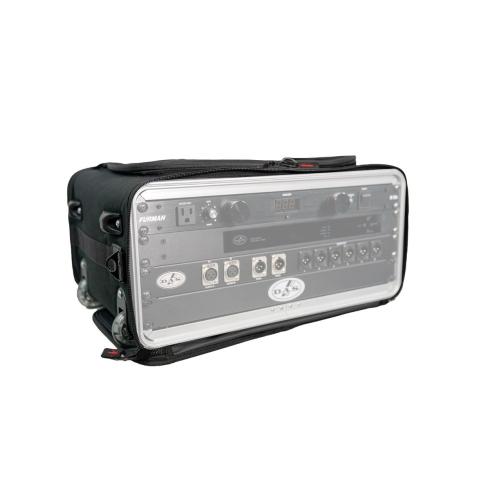

D.A.S. Audio DSP-RACKBAG-V2 Bundle with Integral-M26X Digital Signal Processor & Furman M-8DX Power Conditioner in 3U Rack Bag
Expected July 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
This travel friendly, versatile DSP Rolling Rack is ideal for any audio enthusiast who would like to manage their PA system properly. Housed in an ultra-portable 3U canvas rackbag; the included Furman power conditioner projects your audio system against power surges and electromagnetic interference. The patch-bay makes it easy to setup and breakdown without stress or risk to XLR connections directly on processor.
The DSP itself allows for total protection and control of your PA for precise audio tuning through the use of compression/limiting, crossover, equalizer, delays, and more.
D.A.S. Audio Integral-M26X Processor & M-8DX Conditioner Features:
- Travel friendly (TSA carry-on size).
- Pre-assembled and easy to use.
- All-in-one bundle of: Rolling rackbag, Power conditioner, Audio Management DSP, 2-in 2-thru 6-out patch bay.
- DAS-RackBag-3UW features polyethylene-Reinforced Interior Frame w/ 600-Denier nylon exterior.
- Internal Reinforced Aluminum Valance (rack).
- Retractable Tow Handle & Recessed Wheels + Soft-Grip Carry Handle.
- Rear flap allows access to entire panel of equipment.
- Exterior pocket for cables, etc.
- Furman M-8DX features Surge Protection: Spike & surge protection ensures equipment stays safe and your power stays clean.
- Noise Filtration: AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI).
- Digital Voltmeter + Protection Indicator: Digital voltmeter display incoming line voltage + indicator LED indicating your equipment is being protected.
- 15 Amp Rating: 15 Amp rating with circuit breaker for 9 Outlets.
- Front Panel Pull-out Lights: Two retractable incandescent light fixtures with dimmer control for convenient rack illumination.
- DAS Audio Integral-M26X features 2-in / 6-out: 2 XLR balanced Inputs, with 6 XLR balanced outputs.
- Software: ALMA is a MAC/PC based software for audio management of EQ, Compressor/Limiter Crossover, Delay and more.
- Flexible connectivity: Remote control and monitoring via IP technology, or managed using external controllers through OSC / GPIO.
- Universal Power Supply: Voltage range from 90-250 Volts AC.
- Onboard Presets: 100+ Global preset / 200+ Output presets for our most popular products, ranging from portable to installation products.
- With the ability for you to save your own presets.
- CBI – DSP Patch features Quality XLR Connections: 10-Authentic Neutric XLR (M & F) connections.
- Made in USA: Fabricated by CBI and 100% tooled and made in USA.
D.A.S. Audio DSP-RACKBAG-V2 Bundle Product Specifications:
Applications:
Live/DJ based mobile PA systems
A/V systems and corporate events
Temporary installations/Popups (i.e. clubs/bars/ball rooms)
Shipping Weight: 26 lbs / 11.80 kgs
Shipping Dimensions: H:15" W:22"D: 12"
Item Weight: 26 lbs / 11.80 kgs
Item Dimensions: H:14.5" W:21.5" D:11.75"
D.A.S. Audio INTEGRAL-M26X Product Specifications:
Applications
Retail Stores
Bars, clubs and restaurants
Fitness Centers, hotels, schools
Electronics and Audio
Frequency Response: 20 Hz-30 kHz (+0 -0.5 dB)
Max Input Level: +22 dBu
Max. Output Level: +22 dBu
Controls: Power On/Off, Navigation Buttons
Sampling Rate: 48 kHz
Display: OLED 1.54"
Cooling: Side-Right-to-Left
LED Indicators: On, Comms, Signal, Limit
Power
AC Input Connector: IEC 15A
Power Supply: Universal Mains Switch Mode
Operating Range: 90 - 250 VAC
DSP
Analog Input Channels: 2
Analog Output Channels: 6
AD Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
DA Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
Internal Precision: 32 Bit, 64 Bits Double Precission
Latency: 1 ms
Delay: 50ms per input / 135ms per output
Equalizer: Bell, Lo/Hi-Shelving, Hos
Crossover: Linkwitz-Riley, Butterworth, Bessel
High and Low Pass Filters: Up to 48 dB/oct
Limiters: RMS
Dimensions-Weight
Dimensions ( H x W x D ): 44 x 483 x 210 mm / 1.7 x 19.0 x 8.3 in
Net Weight: 2.5 kg (5.5 lb)
Shipping
Carton Dimensions (H x W x D): 440 x 400 x 60 mm / 17.3 x 15.7 x 2.4 in
Shipping Weight: 4.0 kg (8.8 lb)
Furman M-8DX Specifications:
General
Family: Merit Series
Line Voltage: 120 (Volts)
BlueBOLT Enabled: No
Power Factor Technology: No
Number of Outlets: 9
Number of Isolated Banks: 0
Outlet Descriptions: All 9 outlets filtered and surge protected
Rack Mountable: Yes
Rack Ears Included: Yes
Front Panel Meter(s): Digital Voltmeter
Front Media Light(s): Two 120V incandescent bulbs, 4 watts each
Voltage Regulation: No
Compliance: cTUVus
USB Charging: N/A
Low Voltage Trigger: N/A
AC Power Cord: 6 ft. captive, 14 AWG, with 3-conductor Edison Plug
Signal Line Protection: No
Dimensions: 19" W x 7.5" D x 1.75" H
Weight: 6 lbs
ControlFront panel:
On/Off switch
Light dimmer knob
AC Protection
AC Protection Technology: Standard spike and surge protection
Automatic Voltage Shutoff: No
Under-Voltage Shutoff: N/A
Over-Voltage Shutoff: 130 VAC
Maximum Current Rating: 15 (Amps)
Filtration
Filtration Technology: Standard Level RFI/EMI Filtration
Filtration Rating: Greater than 26dB, 200Khz to 10 Mhz
Shipping Info
Length: 21.8 (Inches)
Width: 9.6 (Inches)
Height: 3.4 (Inches)
Weight: 7.1 (Lbs)
Unit of Measure: Each
UPC: 654061027959
Master Pack Qty: 6
Other Specifications
Spike Protection Modes: Line to Neutral
Energy Dissipation: 150 joules
Peak Impulse Current: 12,000 amps
Construction: Steel Chassis, Black Painted
Each D.A.S. Audio DSP-RACKBAG-V2 Bundle Retail Box Includes:
(1) DAS Audio Integral-M26X loudspeaker system management processor which uses digital signal processing via ALMA software on MAC/PC in order to accomplish the of crossover, equalizer, limiter, and delay+ more.
(1) Furman M-8DX 15A Standard Power Conditioner w/Lights and Digital Voltmeter w/ 9 Outlets Wall Wart Space
(1) DAS Audio DAS-RackBag-3UW 3 space lightweight rolling rack bag with retractable tow handle, aluminum frame and non-scuff rollerblade wheels.
(1) CBI – DSP Patch 2-In, 6-out + 2 Thru: Single Space XLR Patch Bay (not for use with DASnet)
