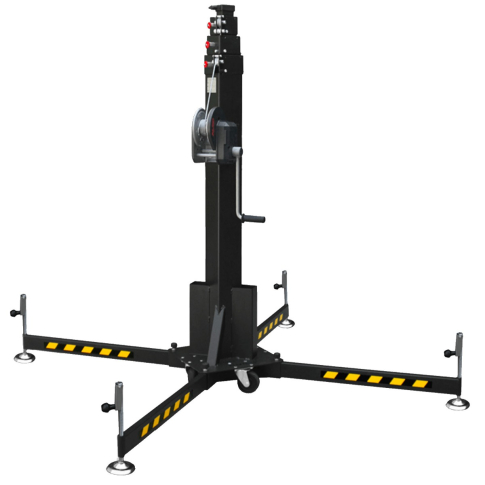

D.A.S. Audio GUIL ELC-780 620 LB Max Load Portable Telescopic Lifting Tower by GUIL - 17' Max Height

Telescopic lifting tower specially certified to lift loads of up to 280 kg (17.10 ft) to a maximum height of 5.20 metres (617 lb). The ELC-780 tower is manufactured with the most advanced welding equipment which guarantees the highest level of safety and strength, complying with the lightweight, sturdiness and manueuvrability requirements needed to lift heavy loads. It is equipped with four detachable stabiliser legs, provided with leveller screw jacks that have reinforced nylon spin handles (ergonomic design) with a double-start thread (quicker adjustment) which facilitates the levelling task and chrome foot plates with non-slip injection moulded rubber pads. These foot plates ensure a perfect adjustment of the tower to the floor surface. Its base is provided with four heavy-duty swivel castors to make handling and transport an easy task. The wheels are secured to the base using a metal plate with 4 fixing points; to guarantee a secure fix even when moving the tower on uneven ground.

This wind-up stand consists of four telescopic sections made in reinforced steel and finished in a textured, black, anti-scratch, powder coating (Epoxy). This finish makes the tower suitable for outdoor use, guaranteeing maximum corrosion resistance. or a quick, safe and effortless lifting process, ELC-780 telescopic towers are equipped with an Ref. AL-KO OPTIMA 901 (900 Kg) hand winch with automatic braking system, which stops and holds the load at the desired height: once you have reached the desired height, by letting go of the winch handle the braking system automatically stops and holds the load in place. The mast sections are extended by means of a set of pulleys with bearings and a galvanised steel wire rope with steel core (Composition: 7×19+0), specially manufactured for lifting heavy loads (DIN 3060).

D.A.S. Audio GUIL ELC-780 Portable Telescopic Lifting Tower Features:

• Automatic brake winch from the Austrian manufacturer AL-KO Ref. AL-KO OPTIMA 901 (900 Kg.)
• Its auto-block system ensures the load remains at the required height.
• Once the required height is achieved, the braking mechanism blocks the load when the handle is released.
• ASB System (Automatic Safety Blocking System.)
• Zip/Trigger safety system with safety bolts.
• In the extreme case of cable breakage, the safety bolt would immediately block the mast, stopping the load from falling.
• The compact base of 42 x 42 cm, is specially designed to allow access to reduced spaces with the tower.
• Oversized welded reinforced ending which strengthens the mast.
• Internal cushioning system to prevent wobbling of the mast sections when extended (on all four sides).
• Double drawback pulley.
• Pulley protectors which reduce the chance of damage to the pulleys during handling and transportation at the same time preventing the cable from coming off the pulleys.
• The top mast comes with a reinforcing ferrule with an ergonomic metallic knob.
• ELC-780 towers come with a handle to help with handling.
• It has a compact design for easy handling, transportation and storage.
• Perfectly manageable by one technician, saving on time and increasing productivity.
