Chauvet Professional Rogue R3 Wash Moving Head Wash Light
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

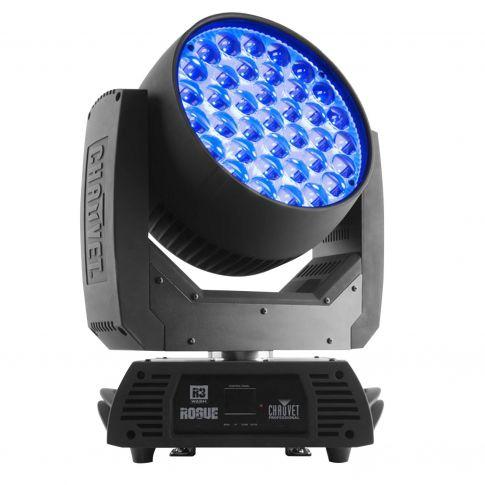

Rogue R3 Wash is a feature packed moving wash workhorse ideal for rental and production inventories. It outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 (15 W) RGBW quad-LEDs. A quick moving zoom range of 12° - 49° gives it the spread to cover large areas. Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.
Chauvet Professional Rogue R3 Wash Features:
- Fully featured RGBW LED yoke wash fixture with LED zone control and zoom.
- 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades.
- 37 RGBW LEDs, 15 W each.
- 9 zones of LED control for pixel mapping effects.
- Unique lens design offers excellent color mixing.
- 6 distinct dimming modes for different dimming needs.
- Easy to read OLED display with simple, effective menu options.
- Simple and complex DMX channel profiles for programming versatility.
- RDM (Remote Device Management) for added programming flexibility.
Chauvet Professional Rogue R3 Wash Moving Wash Light Specifications:
OpticalLight Source: 37 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle: 8° to 30°
Field Angle: 12° to 49°
Zoom Angle: 12° to 49°
Illuminance (12°): 21,000 lux @ 5 m
Illuminance (49°): 1,902 lux @ 5 m
PWM Frequency: 2,400 Hz
Dynamic Effects
Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Construction / Physical
Dimensions: 15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
Weight: 38.5 lb (17.46 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 21, 62, 71, 107
Modes/Personalities: 4 personalities
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
Power and Current: 660 W, 6.21 A @ 120 V, 60 Hz
Power and Current: 689 W, 3.40 A @ 208 V, 60 Hz
Power and Current: 704 W, 3.10 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Each Chauvet Professional Rogue R3 Wash Retail Box Includes:
(1) Chauvet Professional Rogue R3 Wash Moving Wash Light
(1) Neutrik powerCON power cord
(1) Omega bracket with mounting hardware
(1) Warranty Card
(1) Quick Reference Guide
