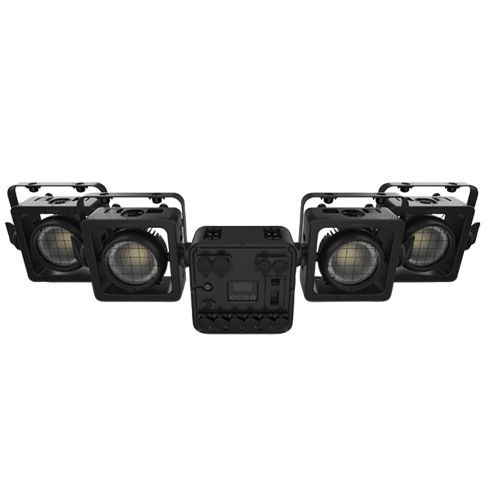

Chauvet Professional STRIKE Array 1 IP65-Rated Audience Blinder/Strobe (4 Pods)
Most orders placed by 2pm ET ship in 2-3 business days
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications. The included remote Driver unit performs automatic addressing of up to (8) STRIKE Array 1 pods for ease of installation.
Chauvet Professional STRIKE Array 1 IP65 Blinder/Strobe Features:
- Intense, stacking blinder/strobe rated IP65 for all-weather use.
- Remote driver unit with automatic addressing of up to 8 pods for clean installations.
- Heads are removable from the frame and can be mounted in standard (included) yoke for a more traditional look.
- Emulated "red shift" to mimic incandescent fixtures perfectly.
- Manual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.
- Innovative interlocking system to connect multiple fixtures together.
- Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.
Chauvet Professional STRIKE Array 1 Product Specifications:
Optical:
Light Source (Single Pod): 48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy
Light Source (Single Pod): 5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy
Color Temperature (at full): 2657 K
CRI: 83.9
Beam Angle: 62.8°
Field Angle: 104.5°
Lumens (Single Pod): 4,353 lm @ 5 m
Illuminance (total) (Single Pod): 153 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
Dynamic Effects:
Dimmer: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction/Physical:
Dimensions: 8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm) (Single Unit with Bracket)
Dimensions: 7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm) (Single Unit with Frame)
Dimensions: 10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm) (Single Unit with Frame and Bracket)
Dimensions: 7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm) (Control Box)
Weight: 3.2 lbs (1.5 kg) (Single Unit with Bracket)
Weight: 6.6 lbs (3.0 kg) (Single Unit with Frame)
Weight: 7.6 lbs (3.5 kg) (Single Unit with Frame and Bracket)
Weight: 6.4 lbs (2.9 kg) (Control Box)
Exterior Color: Black
Housing Material: Aluminum die-cast
Connections:
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Device Outputs (4): 4-pin XLR
Data Connectors: 5-pin IP65 XLR, Seetronic Etherkon IP65
Software Connection: USB
Cable Length (power): 5 ft (1.5 m)
Total max. cable length (shielded cables) between Driver and last Head: 147 ft (45 m)
Control:
Control Protocol: DMX, RDM, ArtNet, sACN
DMX Channels: 1,2,5,4P-5CH,4P-14CH,4P-23CH,4P-26CH,8P-9CH,8P-26CH,8P-43,8P-46CH
Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current (4 PODS): 253 W, 2.13 A @ 120 V, 60 Hz
Power and Current (4 PODS): 248 W, 1.21 A @ 208 V, 60 Hz
Power and Current (4 PODS): 248 W, 1.09 A @ 230 V, 50 Hz
Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V
Power and Current (8 PODS): 509 W, 4.22 A @ 120 V, 60 Hz
Power and Current (8 PODS): 494 W, 2.38 A @ 208 V, 60 Hz
Power and Current (8 PODS): 490 W, 2.14 A @ 230 V, 50 Hz
Certifications/Qualifications:
CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Each STRIKE Array 1 Retail Box Includes:
(4) Chauvet Professional STRIKE Array 1 IP65-Rated Audience Blinder/Strobes mounted in square frame
(4) Linking cables (1m length)
(1) Seetronic Powerkon IP65
(1) Driver Remote
(4) "Head only" yokes
(5) Omega Brackets
