Chauvet Professional Ovation H-55FC Compact Full Color Convection Cooled LED Houselight in White
SKU #: OVATIONH55FCWHT
$1,015.50
Reg.
Limited Supply - Contact Us
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

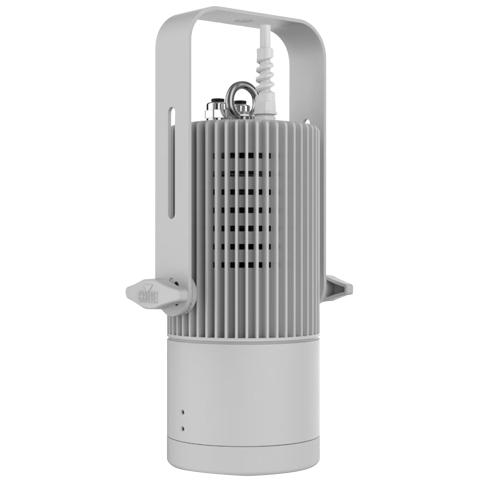

Ovation H-55FC is a small, silent, convection cooled LED houselight with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height. The compact unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. The interchangeable lenses are a must-have feature in theatrical and house of worship applications. The compact houselight also includes multiple mounting options with removable fixture yoke, a recess mounting, and a sconce mounting kit.
Chauvet Professional Ovation H-55FC LED Houselight Features:
- Compact, full color (RGBAL), convection cooled houselight.
- Interchangeable lens plates to adapt to different mounting heights.
- 5-pin XLR and terminal blocks for DMX connections.
- Use included yoke for mounting, or suspend from integrated loop-eye.
- Included recess and sconce mounting kits.
- 16-bit dimming for ultra-smooth fades.
- DMX, WDMX and RDM (Remote Device Management) for added programming flexibility.
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
Chauvet Professional Ovation H-55FC Product Specifications:
OPTICALLight Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy.
Color Temperature (at full): 4807 K
CRI: 82
Beam Angle (w/80° filter): 46.1°
Beam Angle (w/65° lens): 63.3°
Beam Angle (w/45° lens): 38.8°
Beam Angle (w/25° lens): 24.7°
Field Angle (w/80° filter): 76.8°
Field Angle (w/65° lens): 86.9°
Field Angle (w/45° lens): 78.4°
Field Angle (w/25° lens): 46.7°
Illuminance (w/80° filter): 152 lux @ 5 m
Illuminance (w/65° lens): 115 lux @ 5 m
Illuminance (w/45° lens): 173 lux @ 5 m
Illuminance (w/25° lens): 430 lux @ 5 m
Lumens (w/80° filter): 2,698
Lumens (w/65° lens): 2,928
Lumens (w/45° lens): 2,691
Lumens (w/25° lens): 2,849
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: Yes/No
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
Weight: 7.4 lb (3.4 kg)
Exterior Color: White
CONNECTIONS
Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
CONTROL
Control Protocol: DMX, W-DMX, RDM
DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 62 W, 0.541 A @ 120 V, 60 Hz
Power and Current: 64 W, 0.308 A @ 208 V, 60 Hz
Power and Current: 64 W, 0.278 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-10 °C to 45 °C)
REQUIRED ACCESSORIES
RDM2go or other RDM capable interface for fixture set-up
Each Ovation H-55FC Retail Box Includes:
(1) Chauvet Professional Ovation H-55FC Compact Full Color Convection Cooled LED Houselight in White(1) Set of 65°, 40° and 25° Lenses
(1) 80° Filter
(1) Egg Crate
(1) Recess and Sconce Mounting Kits
