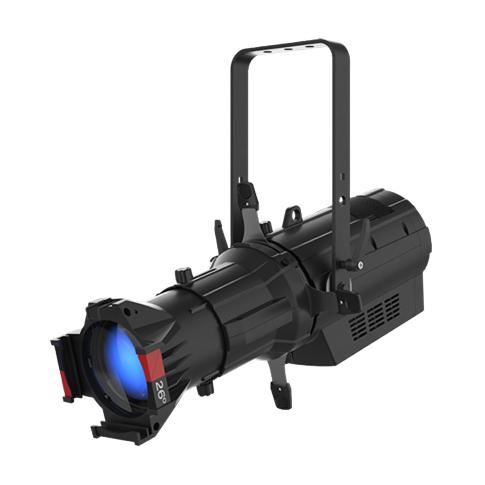

Chauvet Professional Ovation E-910FC Full Color LED (RGBAL) ERS-Style Fixture
SKU #: OVATIONE910FC-2
$1,498.00
Reg.
In Stock - Ships in 2-3 Days
Most orders placed by 3pm ET ship in 2-3 business days
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and onboard dimming curve selection. Also accessible is the Virtual Color Wheel which matches popular gel colors.
Chauvet Professional Ovation E-910FC Full Color Fixture Features:
- Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production.
- Ultra smooth 16-bit dimming of master dimmer and individual colors.
- Flat, even field of light with superior color mixing.
- Virtual Color wheel with color matched to popular gel colors.
- Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS.
- RDM (Remote Device Management) for added flexibility.
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
- Virtually silent operation for use in studio and theatre applications.
- Works perfectly with industry standard lens tubes and accessories.
Chauvet Professional Ovation E-910FC Product Specifications:
Optical
Field Angle (w/36° lens): 34°
Field Angle (w/50° lens): 51°
Field Angle (w/15°-30° lens)(Narrow): 15°
Field Angle (w/15°-30° lens)(Wide): 29°
Field Angle (w/25°-50° lens)(Narrow): 26°
Field Angle (w/25°-50° lens)(Wide): 50°
Lumens (w/5° lens): 1,807
Lumens (w/10° lens): 3,961
Lumens (w/14° lens): 2,827
Lumens (w/19° lens): 3,236
Lumens (w/26° lens): 4,316
Lumens (w/36° lens): 3,918
Lumens (w/50° lens): 3,813
Lumens (w/15°-30° lens)(Narrow): 4,028
Lumens (w/15°-30° lens)(Wide): 1,553
Lumens (w/25°-50° lens)(Narrow): 5,261
Lumens (w/25°-50° lens)(Wide): 7,263
Illuminance (w/5° lens): 16,300 lux @ 5 m
Illuminance (w/10° lens): 7,430 lux @ 5 m
Illuminance (w/14° lens): 4,420 lux @ 5 m
Illuminance (w/19° lens): 2,530 lux @ 5 m
Illuminance (w/26° lens): 1,720 lux @ 5 m
Illuminance (w/36° lens): 1,020 lux @ 5 m
Illuminance (w/50° lens): 457 lux @ 5 m
Illuminance (w/15°-30° lens)(Narrow): 4,260 lux @ 5 m
Illuminance (w/15°-30° lens)(Wide): 1,620 lux @ 5 m
Illuminance (w/25°-50° lens)(Narrow): 1,790 lux @ 5 m
Illuminance (w/25°-50° lens)(Wide): 825 lux @ 5 m
Barrel Rotation: +/- 27°
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
Dimensions (w/15°-30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
Dimensions (w/25°-50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
Weight (fixture only): 15.4 lb (7.1 kg)
Weight (w/14° lens): 20.8 lb (9.43 kg)
Weight (w/26° lens): 19.8 lb (9 kg)
Weight (w/15°-30° lens): 29.4 lb (13.3 kg)
Weight (w/25°-50° lens): 27 lb (12.2 kg)
Exterior Color: Black or White
Gobo Size (Optional): "A": 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): "B": 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°-30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°-50° lens): 7.5 in (191 mm)
Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Control
Protocol(s): DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
Modes/Personalities: 8 personalities (1, 3, 5, 7, 10, 12, 13, 16 or HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 13 units @ 240 V
Power and Current: 220 W, 2.17 A @ 100 V, 60 Hz
Power and Current: 215 W, 1.79 A @ 120 V, 60 Hz
Power and Current: 214 W, 1.03 A @ 208 V, 60 Hz
Power and Current: 216 W, .94 A @ 230 V, 50 Hz
Power and Current: 217 W, .91 A @ 240 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Noise Level (Idle): 1.0 dB(A) @ 1 m
Noise Level (Auto): 16.8 dB(A) @ 1 m
Noise Level (On): 29.6 dB(A) @ 1 m
Noise Level (Off): 13.8 dB(A) @ 1 m
Noise Level (silent): 25.6 dB(A) @ 1 m
Required Accessories
Lens Tube: 19°, 26°, 36°, 50°
Each Ovation E-910FC Retail Box Includes:
(1) Chauvet Professional Ovation E-910FC Full Color LED (RGBAL) ERS-Style Fixture
(1) Seetronic Powerkon IP65 Power Cord
