About This Product

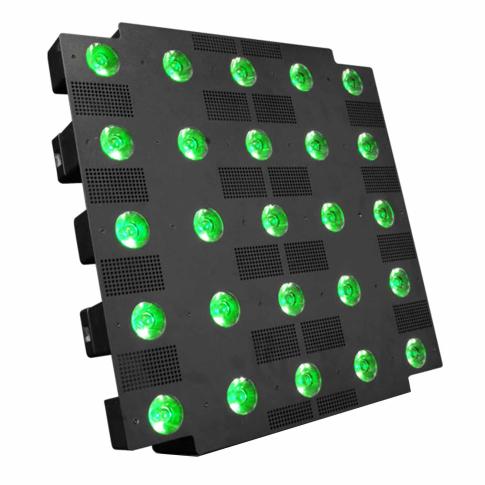

Chauvet Professional Nexus Aq 5×5 Pixel Mapping Panel with 25 RGBW Quad-LEDs

Nexus Aq 5×5 is a pixel mapping panel with 25 RGBW quad-LEDs producing tight beams of beautifully colored light. Versatile, it works wonders as a color wash, audience blinder or stunning pixel mapped display. Kling-Net, Art-Net and DMX controllable, it features a Virtual Gobo Wheel to create unique scenes by modifying channels and an Auto Color function that blends white and RGB LED values for unrivaled color mixing (in channels 3, 15, 75, 111). Designed for easy rigging with interlocking hardware, the panels lend themselves to building large arrays that stand out in any application. Rigging is fast and easy with integrated alignment and load-rated interlocking hardware. Use of the optional Affinity Rig Kit further facilitates large displays.

Nexus Aq 5×5 Features:

  • Stage blinder delivering great output due to 25 RGBW LEDs.
  • Project narrow beams of light.
  • Create impactful text and vivid animated graphics.
  • Smooth dimming curve.
  • Built-in power supply for easy use.
  • Design with intuitive individual pixel-mapping options: Kling-Net, Art-Net, DMX.
  • Flexible panel system with integrated locks and 0.5 x 0.5 m footprint optimal for larger arrays.
  • Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin XLR DMX connections.
  • Built-in effects triggered by DMX.
  • HSV, HSI, DMX control options.
Chauvet Professional Nexus Aq 5×5 Specifications

Optical
Light Source: 25 LEDs (quad-color RGBW) 10 W, (2.6 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 8°
Field Angle: 13°
Illuminance (total): 11,350 lux @ 5 m
Pixels: 5 x 5
Pixel Pitch: 100 mm
Pixel Density: 100/m2

Dynamic Effects
Dimmer: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Built-in Automated Programs: Yes

Construction / Physical
Dimensions (single unit): 3.8 x 19.7 x 19.7 in (95.5 x 500 x 500 mm)
Dimensions (roadcase): 34 x 24 x 27 in (855 x 600 x 690 mm)
Weight (single unit): 22.2 lb (10 kg)
Weight (roadcase): 184 lb (83.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy

Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR, Neutrik etherCON
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: Art-Net, Kling-Net, DMX
DMX Channels: 4, 6, 10, 100 or 105
Art-Net Channels: 100

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
Power and Current: 320 W, 2.66 A @ 120 V, 60 Hz
Power and Current: 318 W, 1.52 A @ 208 V, 60 Hz
Power and Current: 318 W, 1.38 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location

The Aq 5×5 Box Includes:
Nexus Aq 5x5
Neutrik powerCON power cord
#8 Allen wrench
