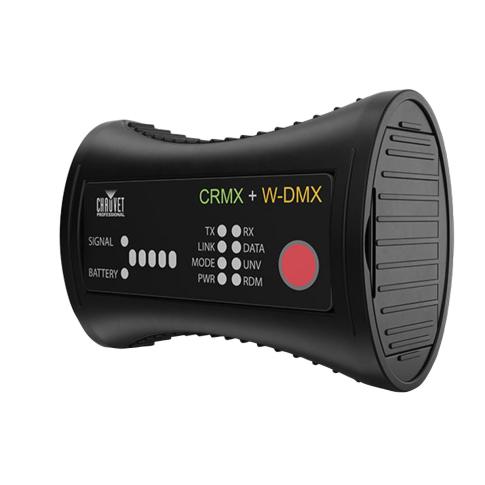

Chauvet Pro MICROT1TRXG6 W-DMX Micro T-1 TRX G6 Transceiver - Store Demo
SKU #: MICROT1TRXG6-IO
Reg.
$604.50
Now
$538.86
Reg.
In Stock - Only 1 Left!
Most orders placed by 3pm ET ship same day (business days)
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Wireless Solutions Micro T-1 Transceiver works with W-DMX and CRMX enabled fixtures to generate a wireless control signal for DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX or CRMX signals to make any fixture or rig wireless. Backward compatible with G3, G4, G4S, and G5 series, and able to operate both W-DMX and CRMX enabled products in G4S Mode. Configurable via Bluetooth with the W-DMX Configurator app. It also features a 5V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.
Chauvet Professional MICROT1TRXG6 W-DMX Transceiver Features:
- Transmit and receive 1 universe of W-DMX, CRMX and RDM protocols.
- Supports the W-DMX Configurator app over Bluetooth (downloadable from app store).
- Backward compatibility with G3, G4, G4S, and G5 series.
- Can operate both W-DMX and CRMX enabled products in G4S Mode.
- Supports active frequency hopping.
- Power with included 5V USB power supply or (4) AAA batteries (not included).
- Batteries last for up to 8 hours in receiver mode and 4 hours in transceiver mode.
- Built in indicator lights for signal and battery strength, as well as operation modes.
- Can be used directly with any Maverick or WELL fixtures.
- Can be used to make any lighting system wireless for data.
Chauvet Professional MICROT1TRXG6 Product Specifications:
Construction/Physical:
Dimensions: 3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)
Weight: 1.67 lb (800 g)
Exterior Color: dark gray
Housing Material: High-impact flame-retardant polymer
Connections:
Power Connection: 5V micro USB connector (micro B) to wall wart adapter
Data Connectors: 5-pin XLR
Control:
Control Protocol: W-DMX, CRMX, RDM
Frequency (operating): # 2.4 GHz
Universes per device: 1
Number of DMX channels: 512
DMX Latency: <5 ms
Max universe in coexistence: 16
Error correction: yes
DMX Fidelity: yes
Adaptive Frequency Hopping: Yes
W-DMX G3, G4, G4S, and G5 compatibility: Yes
Standard range: up to 650 ft (200 m)
Internal antenna: Yes
Sensitivity (0.1% PER): -97 dBm
Modulation method: GFSK
Electrical:
Input Voltage: 9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz)
Battery:
Battery type: AAA
Rechargeable: No
Battery Life: 8 hours in receiver mode, 4 hours in transceiver mode
Certifications/Qualifications:
CE, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Each MICROT1TRXG6 Retail Box Includes:
(1) Chauvet Professional MICROT1TRXG6 W-DMX Micro T-1 TRX G6 Transceiver
(1) Micro USB to wall wart adapter
(1) User Manual
(1) Velcro attachment strap
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
