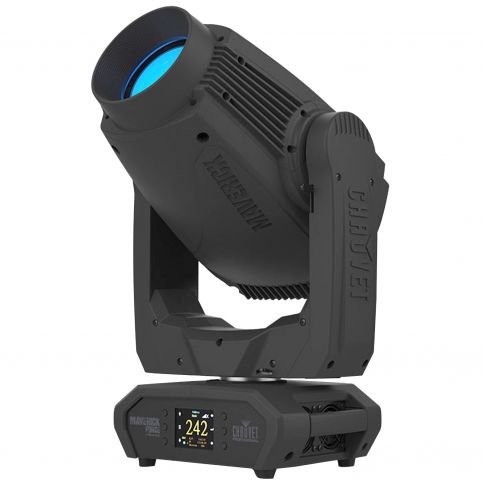

Chauvet Professional Maverick Force S Profile 350 W LED Yoke Profile Fixture
SKU #: MAVERICKFORCESPROFIL
$5,431.50
Reg.
As low as $543/mo or 0% APR with
Limited Supply - Contact Us
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Maverick Force S Profile is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, framing shutters, and control options in a lightweight frame. Well under 50 lbs, this compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S Profile includes a custom framing system equipped with dual axis movement and a 120° complete module rotation for fast beam shaping. A speedy effects artillery includes motorized iris, frost, focus, a 5-facet prism and wide zoom ranging from 4.5° to 41.6°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.
Chauvet Professional Maverick Force S Profile Fixture Features:
- Fully featured, compact and lightweight 350 W LED yoke profile fixture.
- Includes CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static.
- 16-bit dimming of master dimmer for smooth control of fades.
- Variable CMY color mixing system to create a wide pallet of colors.
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options.
- RDM Enabled for remote addressing and trouble shooting.
- 4.5° to 41.6° zoom range for variable beam sizes.
- Iris, 5-facet prism, and frost for beam control.
- 4 blade framing shutters with dual axis movement, full wipe, and 120 degree total module rotation.
- True 1 compatible power input.
- Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup.
- USB slot for software uploads.
- Battery backup display with auto-rotate depending on fixture orientation.
Chauvet Professional Maverick Force S Profile Product Specifications:
OPTICALLight Source: 1 LED (CW) 350 W, (2.7 A), 8400K, 25,000 hours life expectancy
Color Temperature (at full): 6937K
CRI: 69
CRI with CRI filter: 89.6
Front Lens Dia: 119 mm
Beam Angle: 4.5° to 35.9°
Field Angle: 45.2° to 40.5°
Zoom Angle: 5.8° to 41.6°
Lumens - Source: 20,000
Lumens - Output: 14,669
Illuminance (4.5°): 56,806 lux @ 5 m
Illuminance (41.6°): 1,840 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 + white, split colors, continuous scroll at variable speeds
Colors: CMY Wheels
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (metal), continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 blades, each with dual axis movement.
Framing Shutter rotation: 120°
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
CONSTRUCTION / PHYSICAL
Dimensions: 15.5 x 9.8 x 25.0 in (361 x 238 x 639 mm)
Weight: 52.9 lb (24 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
DMX Channels: 31 or 47
Art-Net Channels: 31 or 47
Modes/Personalities: 2 personalities (31, 47)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
Power and Current: 580 W, 5.82 A @ 100 V, 60 Hz [9.0 A in-rush]
Power and Current: 563 W, 4.75 A @ 120 V, 60 Hz [8.0 A in-rush]
Power and Current: 547 W, 2.69 A @ 208 V, 60 Hz [15.0 A in-rush]
Power and Current: 546 W, 2.44 A @ 230 V, 50 Hz [17.0 A in-rush]
Power and Current: 543 W, 2.33 A @ 240 V, 50 Hz [16.0 A in-rush]
Power and Current (resting): 86 W, 0.929 A @ 100 V, 60 Hz
Power and Current (resting): 85 W, 0.757 A @ 120 V, 60 Hz
Power and Current (resting): 82 W, 0.449 A @ 208 V, 60 Hz
Power and Current (resting): 81 W, 0.412 A @ 230 V, 50 Hz
Power and Current (resting): 79 W, 0.404 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 37.5 dB level @ 1 m
Noise Level (Static - Full): 47.1 dB level @ 1 m
Noise Level (Static - Eco): 37.9 dB level @ 1 m
Noise Level (Static - Auto): 38.1 dB level @ 1 m
Noise Level (Max): 45.9 dB level @ 1 m
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
Each Maverick Force S Profile Retail Box Includes:
(1) Chauvet Professional Maverick Force S Profile 350 W LED Yoke Profile Fixture(1) Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware
(1) Quick Reference Guide
