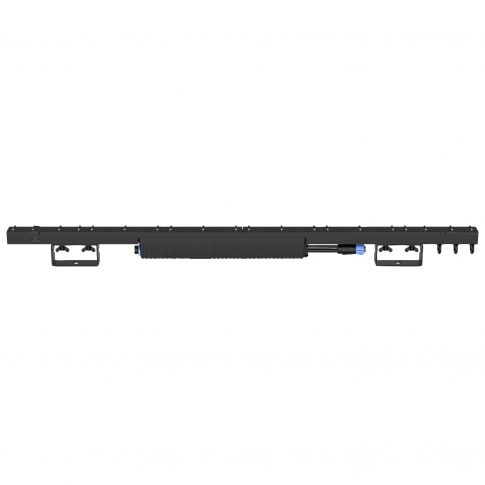

Chauvet Professional F6 Strip IP Product Specifications:
Optical
Light Source: 720 LEDs (tri-color RGB) SMD 1921, 50,000 hours life expectancy
Color Wavelength: red (615 to 630 nm), green (515 to 535 nm), blue (460 to 475 nm)
Viewing Angle (H/V): 160°/155°
Calibrated Illuminance: 5500 NITS
Maximum Illuminance: 5500 NITS
Contrast Ratio: 5,000: 1
Pixels: 144 x 5
Pixel Pitch: 6.9 mm
Minimum Viewing Distance: 10 ft (3 m)
Grayscale: 15 bit
Pixel Density: 20,736/m2
Display Refresh Rate: 5,940 Hz
Construction/Physical
Dimensions: 39.37 x 1.36 x 2.69 x in (1,000 x 34.5 x 68.2 mm)
Weight: 4.85 lb (2.2 kg)
Threaded Bolt: M12
Exterior Color: Black
Housing Material: Aluminum extrusion and Aluminum die-cast
Maximum vertical hang: 4 strips
Transparency: 0%
Connections
Power Connection: Edison (Local) plug to Seetronic TRUE1
Power Input: Seetronic TRUE1
Power Output: Seetronic TRUE1
Data Connectors: Seetronic etherCON SE8FC-L
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Novastar
Maximum Strips/VIP Drive 83R (0° or 90° orientation): 70/port, 560/Drive (8 ports)
Maximum Strips Wide/VIP Drive 83R (horizontal orientation): 26
Maximum Strips Tall/VIP Drive 83R (vertical orientation): 7
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 50 units @ 120 V; 55 units @ 208 V; 60 units @ 230 V
Power and Current: 32 W, .265 A @ 120 V, 60 Hz
Power and Current: 52 W, .248 A @ 208 V, 60 Hz
Power and Current: 53 W, .229 A @ 230 V, 50 Hz
Power and Current (resting): 3 W, .049 A @ 120 V, 60 Hz
Power and Current (resting): 2 W, .038 A @ 208 V, 60 Hz
Power and Current (resting): 2 W, .034 A @ 230 V, 50 Hz
Certifications/Qualifications
CE, MET, ROHS, FCC
IP Rating: IP65, temporary outdoors
Thermal Dissipation @120V: 109 BTU per hour
Thermal Dissipation @ 208V: 177 BTU per hour
Thermal Dissipation @ 230V: 180 per hour
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
Each F6 Strip IP Retail Box Includes:
(1) Chauvet Professional F6 Strip IP Outdoor-Ready 6.9mm Pixel Pitch Video Panel
(1) Warranty Card
(1) QRG
(1) Square milky filter (for diffused output)
(1) Black stealth filter (for high contrast applications)
