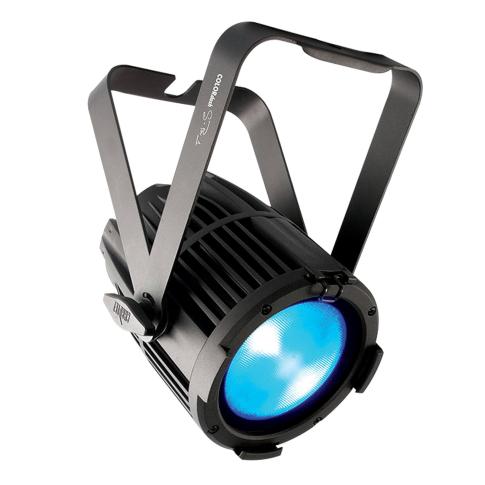

Chauvet Pro COLORdash S-Par 1 RGBA LED Wash Light
SKU
COLORDASHSPAR1
$479.99
Item Backordered
Expected April 30, 2025
Only at IDJNOW
Chauvet Pro COLORdash S-Par 1 RGBA LED Wash
The COLORdash S-Par 1 is the first of the next generation of COLORdash family of products which appear to have a single light source. Using a new high-power RGBA LED engine and homogenizing optic, COLORdash S-Par 1 is poised to become the workhorse of the Event lighting industry. The RGBA LEDs produce a beautifully blended color palette with a subtle soft edge. Fully convection cooled and using IP rated power and data connectors allows the fixture to be used indoors or out. An innovative touch display and rugged split yoke make this fixture perfect for any event.
- RGBA LED wash for events where indoor/outdoor flexibility is needed.
- Completely homogenized wash with superior color mixing.
- All environment operation with IP rated power and DMX connections.
- Color temperature presets from warm white to daylight.
- Color temperature presets from warm white to daylight.
- OLED display with password protection and touchscreen interface.
- Double-bracket yoke doubles as floor stand.
Chauvet Pro COLORdash S-Par 1 Specifications
Optical
Light Source: 27 LEDs (6 red, 7 green, 6 blue, 8 amber) 3 to 4 W, (950 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Color Temperature (at full): 6259 K
Beam Angle: 22°
Field Angle: 42°
Illuminance (total): 377 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 12.32 x 9.09 x 8.38 in (313 x 231 x 213 mm)
Weight: 9 lb (4.1 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX
DMX Channels: 5, 6 or 11
Modes/Personalities: 3 personalities (5, 6, 11)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
Power and Current: 66 W, 0.551 A @ 120 V, 60 Hz
Power and Current: 64 W, 0.336 A @ 208 V, 60 Hz
Power and Current: 65 W, 0.301 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
The COLORdash S-Par 1 Box Includes:
(1) COLORdash S-Par 1
(1) Seetronic Powerkon IP65 power cord
(1) Gel frame
(1) User manual
(1) Warranty card
