Be the first to review this product
Expected March 31, 2025
Chauvet DJ GigBar Move Effect Light System Features:
- 5-in-1 lighting system that includes moving heads, derbies, washes, a laser strobe effect pre-mounted on a single bar.
- Separate color and gobo wheels allow for creative programming.
- Activate the built-in Totem Mode to keep the moving heads focused on the dance floor.
- System includes a tripod, wireless footswitch, and FREE carry bags to ensure quick setup.
- Built-in UV LEDs illuminate florescent objects and make them pop.
- Individual control of each effect ensures your show looks the way you need it to.
- Easy control via stand-alone, DMX, wireless IRC-6 remote or wireless footswitch.
- Compatible with GigBAR 2 in master/slave mode for huge coverage and dynamic light shows.
Chauvet DJ GigBar Move Specifications:
DMX Channels: 3, 17 or 35
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/180°
Colors: (moving head): 7 + white / (moving head): 7 + open
Light Source:
(pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (dual-color white + UV) 5 W (1.5 A), 50,000 hours life expectancy
(derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
(moving head): 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
(laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
Strobe Rate: (all effects): 0 to 20 Hz
Beam Angle: (moving head): 11° / (pars): 19° / (strobe): 8°
Field Angle: (pars): 30° / (strobe): 18°
Coverage Angle: (derby): 131° / (laser): 93°
Fits Tripod Size: 1.5 in (37.4 mm)
Illuminance: (pars): 1,205 lux @ 2 m (per par) / (moving head): 1056 lux @ 2 m (per head) / (strobe): 86 lux @ 2 m (per zone)
Power Linking: 7 units @ 120 V; 12 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 81 W, 1.1 A @ 120 V, 60 Hz / 79 W, 0.6 A @ 230 V, 50 Hz
Weight: 23.4 lb (10.7 kg)
Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Approvals: CE, FDA, FCC
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Footswitch Operating Frequency: 433 MHz
Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch Battery: 9 V alkaline
Included Controllers: IRC-6, wireless footswitch

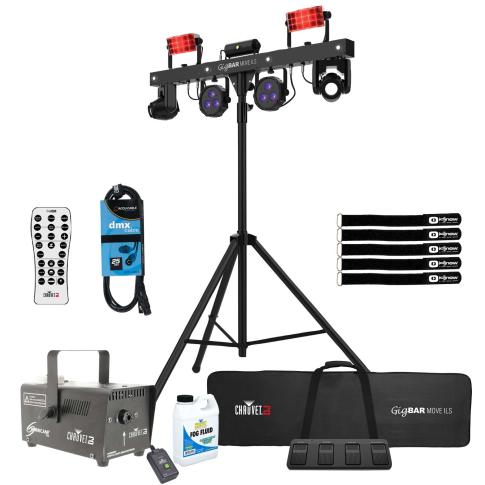

(1) Chauvet DJ GigBar Move Effect Light Bar
(1) Power cord
(1) IRC-6 remote
(1) Carrying bag
(1) Tripod
(1) Tripod carry bag
(1) Wireless Footswitch
(1) Hurricane 700 Fog Machine
(1) Pint of Fog Fluid
(1) Power Cord
(1) 25FT Sure-Fit DMX Connecting Cable
(5) 8" Reusable Hook and Loop Cable Ties
