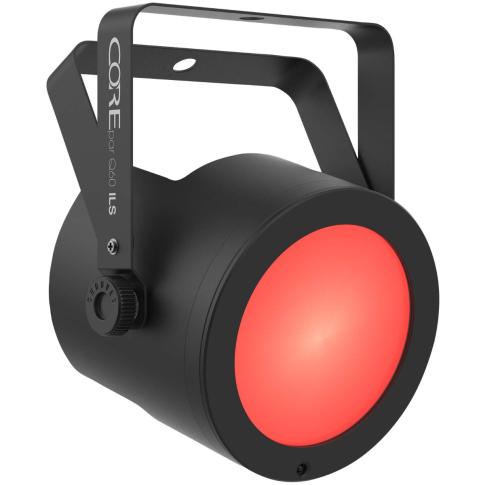

Chauvet DJ COREPARQ60ILS 60W COB (Chip-on-Board) LED with ILS Compatibility
Questions? Call 1-800-355-7746 or Chat below
Chauvet DJ COREPARQ60ILS COB LED Features:
- COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing.
- ILS compatibility for use in the ILS ecosystem.
- D-Fi USB compatibility for wireless Master/Slave or DMX control.
- Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds.
- Withstand the harshness of traveling from gig to gig with a robust housing.
- Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit.
- Achieve flicker-free video operation with high-frequency LED dimming.
- Save time running cables and extension cords by power linking multiple units.
- Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote.
- Create customized colors using the built-in LED display.
- Achieve smooth LED fading with built-in dimming curves.
- Easily transports in the optional CHS-40 VIP Gear Bag.
Chauvet DJ COREPARQ60ILS Product Specifications:
DMX Channels: 4 or 9
DMX Connectors: 3-pin XLR
Light Source: 1 COB LED (quad-color RGBW) 60 W, (2.8 A), 50,000 hours life expectancy.
Strobe Rate: 0 to 29 hz
Beam Angle (without lens): 74°
Field Angle (without lens): 100°
Beam Angle (with lens): 20°
Field Angle (with Lenes): 30°
Illuminance (without lens): 320 lux @ 2 m
Illuminance (with lens): 2,796 lux @ 2 m
Color Temperature Range: 2700 - 6000K
Cable Length: 5ft (1.5 m)
Power Linking: 9 units @ 120 V; 17 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 59 W, 0.8 A @ 120 V, 60 Hz
Power and Current: 57 W, 0.5 A @ 230 V, 50 Hz
Bracket Mounting Hole: 13 mm
Optional Controllers: IRC6, D-Fi USB
Approvals: CE, RoHS, UKCA
Weight: 3.4 lbs. (1.5 kg)
Size: 7.5 x 7.5 x 8.2 in (192 x 192 x 210 mm)
Each COREPARQ60ILS Retail Box Includes:
(1) Chauvet DJ COREPARQ60ILS 60W COB (Chip-on-Board) LED with ILS Compatibility
(1) Magnetic Fresnel Lens
