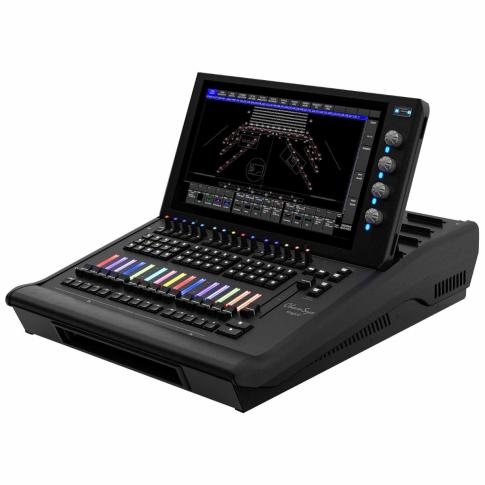

ChamSys MagicQ MQ500M Stadium Wing with Flight Case

SKU
CHAMMQ500MPBWINGCASE
$10,500.00

Limited Supply - Contact Us

Questions? Call 1-800-355-7746 or Chat below

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

6000+ Reviews

95%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

MagicQ MQ500M Stadium Wing is designed to operate with the MagicQ MQ500M Stadium console at the highest level of show control. MQ500M Stadium Wing features 30 playbacks in total: 15 motorised faders and 15 encoder playbacks all with RGB illumination. The wing also incorporates a full HD multitouch display, 4 DMX outputs, and in-built UPS.

On the MQ500M all 256 universes of DMX are available direct through the network ports on the rear of the console over industry the standard lighting protocols sACN, Art-Net and Pathport, without the need for additional processing nodes this console is real value for money. With its inbuilt UPS, the MQ500M is a complete 256 universe stand alone all in one lighting control solution. Playback encoders take live operation to new heights. A multi array of different functions can be assigned to the playback encoders with full legending directly above on the display presenting the current function to the user. The playback encoders can be set to controlling intensity, LTP channels, FX size, FX speed, rate and time. Playback encoders can control cue stacks of their own, or be tied to the fader playback below, or even control a whole bank of playbacks, or a whole page of playbacks. The MagicQ MQ500M is built on the proven reliable MQ500 software which has excelled on 200 universe shows with thousands of fixtures. Show files are fully compatible between MQ500M, MQ500 and all other ChamSys consoles making it easy to move between consoles. Unique to ChamSys, show files are both forwards and backwards compatible so no need to worry about software versions.

ChamSys MagicQ MQ500M Stadium Wing Features:

  • Compatible with MagicQ MQ500M Stadium console.
  • 15 fully motorised fader playbacks.
  • 15 encoder playback with RGB indicators.
  • RGB illumination of playbacks.
  • Backlit buttons.
  • 15" Multi touch HD display.
  • Dual motorised 100mm crossfaders ideal for Theatre.
  • 4 assignable DMX ports.

ChamSys MagicQ MQ500M Product Specifications:

Hardware Specifications:
Motorised Playbacks: 15
Encoder Playbacks: 15
Total no of Playbacks: 30 (15+15)
Dual Motorised Cross Faders: Yes
Execute Encoders: 4
Backlit Keys: Yes
Direct DMX Outputs: 4
Illuminated Playback/Encoders with RGB control: Yes
Inbuilt 15" HD Multi-Touch Display: 1
High Power USB Port: 1
Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
Front Storage Pocket: 1
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:
Max Number of DMX Channels: 131,072
Max Number of Fixtures Supported: 131,072
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)

Console Weights and Dimensions:
Width: 471mm (18.5 inches)
Depth: 587mm (23 inches)
Height: 85mm high at front (3.3 inches), 188mm high at rear (screens stored) (7.4 inches)
Weight: 19kg (41.9 lb)

Boxed Weights and Dimensions:
Width: 690mm (21 inches)
Depth: 590mm (23.3 inches)
Height: 340mm (13.3 inches)
Weight: 21kg (46.2 lb)

Flight Case Weights and Dimensions:
Width: 690mm (21 inches)
Depth: 590mm (23.2 inches)
Height: 340mm (13.3 inches)
Weight (console in flight case): 36kg (79 lb)

Each MagicQ MQ500M Retail Box Includes:

(1) ChamSys MagicQ MQ500M Stadium Wing
(1) Flight Case
(1) Dual Colour Desk light
(1) Dust cover
(1) Neutrik powerCON TRUE1 Power Cable
(1) Neutrik USB A-B connection cable
(1) Standard USB A-B connection cable
(1) HDMI to HDMI connection cable
(1) HDMI to DVI connection cable
