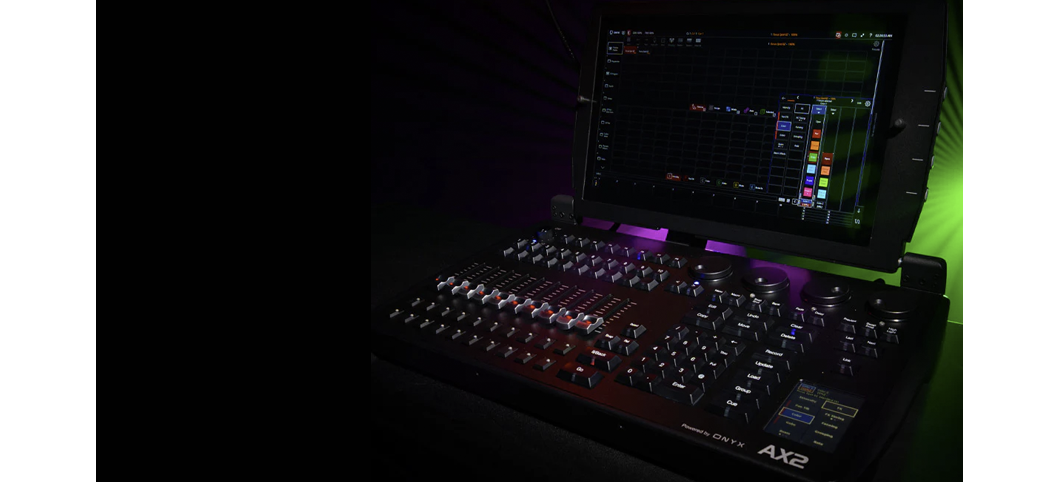

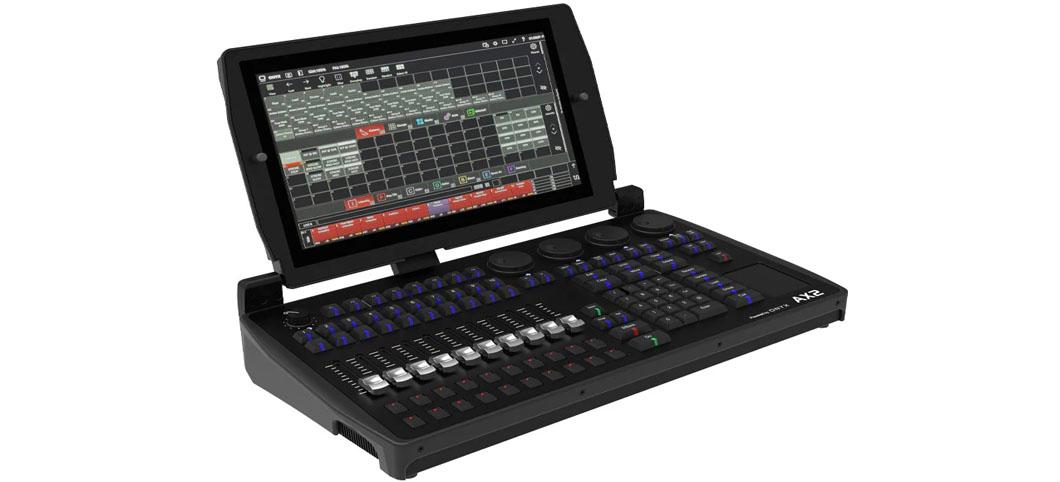

Meet the ADJ AX2 — Compact. Commanding. Fully Ready for the Big Show.
Lighting consoles are the heartbeat of every show. When the moment hits, when the lasers fire, the crowd roars, and the entire stage needs to react, you need gear that responds instantly and never stumbles.
ADJ knows that reality better than anyone. And with the brand-new AX2, they’ve taken a massive step forward. This is the first fully integrated console in the ADJ lineup built on the powerful ONYX control platform from Obsidian and it’s an absolute powerhouse for its size.
If you’ve been waiting for a desk that blends serious processing power, an ergonomic workflow, and a compact footprint that fits almost anywhere… the AX2 just might be your new FOH best friend.
Full ONYX Control Without the Bulk
Let’s start with the reason LDs are so hyped about this thing:
32 universes of onboard processing.
No external processors. No giant racks. No surprise add-ons inflating your budget.
Turn it on → run your show. It’s that simple.

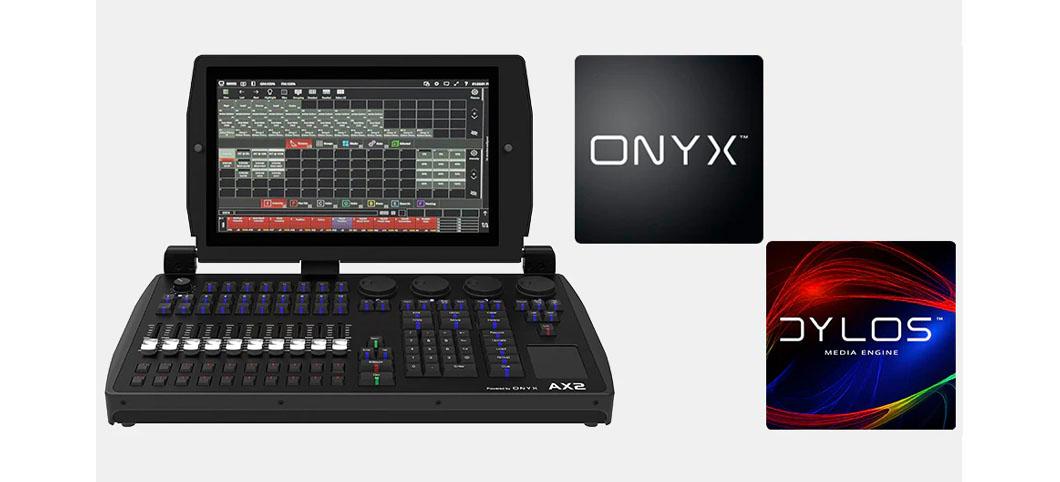

The ADJ AX2 gives you the full ONYX command and keypad section, so if you’ve worked with Obsidian or other ONYX consoles before, you’ll feel right at home. And if you’re jumping in for the first time? You’ll appreciate the clean workflow and intuitive layout right away.
It also includes ADJ’s DYLOS Media Engine with five zones of pixel control, so whether you’re driving movers, strobes, media walls, or a full pixel-mapped rig, you get deep creativity with lighting and video effects.

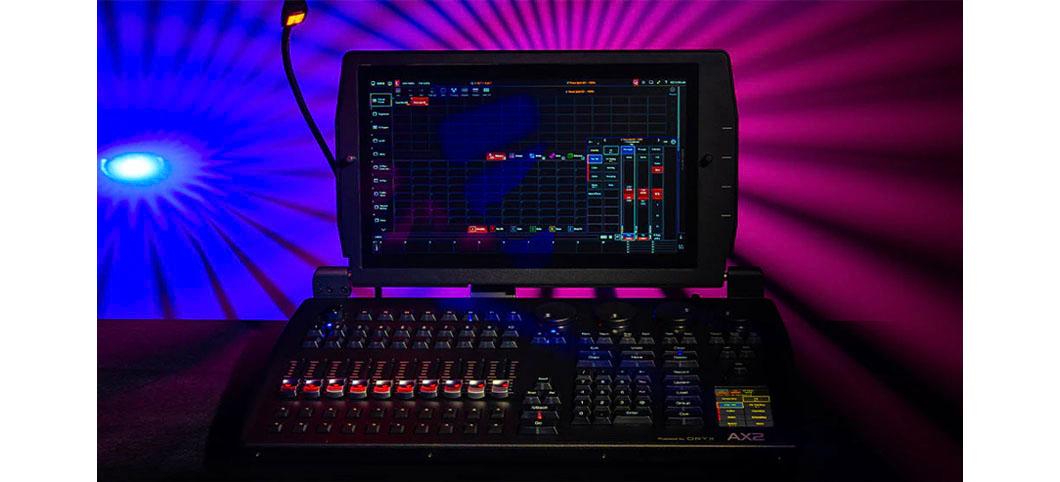

Touchscreens Everywhere You Want Them
A console this size doesn’t usually give you this much real estate:
- 15.6" High-Brightness Full HD Multi-Touch Display
- 3.5" RGB Assistive Touchscreen for parameters, timing, effects
- Support for two external 4K touch displays when you want more direct control
Plus:
- 10 full-size playback faders with assignable buttons
- 8 customizable multi-function keys
- 8 parameter encoders with status LEDs
This setup isn’t cramped. It isn’t an afterthought. It’s designed for live operation, when you need to reach, react, and make magic without digging through menus.
Built Like a Tank — Without Weighing Like One
Under the hood, this thing is serious:
- Intel Hexa-Core Processor
- 16GB DDR4 RAM
- 500GB NVMe M.2 SSD
- Industrial thermal design with advanced cooling
- Windows 11 IoT Embedded OS for rock-solid stability
Fast boot times. Instant execution. Quiet, cool performance, even when the pressure is on.
And yet…
It weighs only 10.2 lbs.
Bring it on tour. Run it in tight booths. Fly it for corporate or installs. The AX2 fits the real world.
Connectivity for Any Size Show
Whether you’re walking into a venue with plug-and-play fixtures or a full networked system, you’re covered:
- 4x DMX/RDM Universes (5-pin locking XLR)
- Dual Gigabit ports for Art-Net, sACN & ONYX X-Net
- SMPTE + MIDI for time-coded productions
- USB 3.0 for show files and expansion
- 2x DisplayPort outputs for external monitors
This is the kind of flexibility that rental houses love and touring LDs demand.
Who Is the ADJ AX2 For?
- Touring lighting designers who want the most universes per dollar
- Production companies building out advanced pixel rigs
- Clubs and venues stepping up their visual show
- Churches and performance spaces needing a serious professional solution
- Mobile production teams who need power without weight or bulk
It’s a console you can grow into — not one you’ll outgrow.

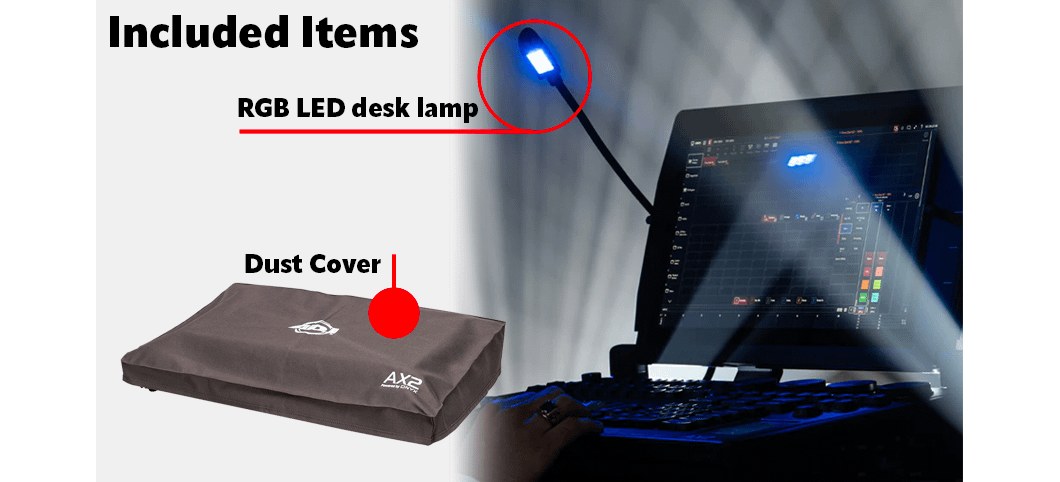

What’s Included
ADJ gives you everything you need to walk into a show:
- RGB desk lamp
- Dust cover
- USB cable
- External PSU
- Recovery flash drive
- Power cable
Unbox it → Plug it in → Start programming.
Final Thoughts
The ADJ AX2 isn’t trying to replace the massive flagship desks out there.
It’s here to deliver that same level of control, in a form factor that’s faster, smaller, smarter, and built for the realities of modern shows.
If you want a console that’s:
- Easy to travel with
- Fast to operate
- Absolutely packed with raw processing power
- And ready for every kind of production you throw at it…
Then yeah, the AX2 deserves a spot at your front-of-house.
Take Command of Your Show
Ready to put the AX2 to work?
