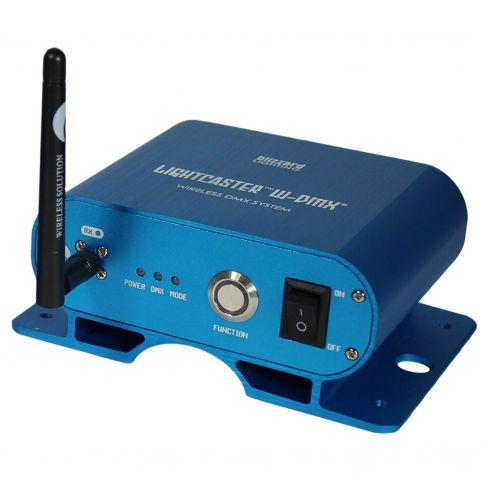

Blizzard Lighting LightCaster W-DMX Wireless DMX Receiver
About This Product
Blizzard Lighting LightCaster W-DMX Wireless DMX ReceiverWe are proud to announce the immediate availability of yet another exciting new wireless DMX option with the LightCaster W-DMX 2.4 GHz wireless DMX system.
There are two types of LightCaster W-DMX units, and while on the outside they look virtually identical, each unit is equipped to perform different tasks:
"LightCaster WDMX Receiver" - (receiver only)
"LightCaster WDMX" - (transceiver, it can transmit or receive)
* These units are currently only sold individually, and not as a package.
A basic a LightCaster W-DMX setup would consist of a Lightcaster WDMX transceiver (to transmit signal), and at least one LightCaster W-DMX receiver (or possibly another transceiver unit) to receive the signal. For those not already familiar with W-DMX, it is a two-time award winning wireless DMX technology, created and owned by Wireless Solution Sweden AB... and is today the un-official standard for those that require the most dependable product available for transmitting lighting control data wirelessly.
Users of the LightCaster W-DMX system can expect an outstanding wireless range of up to 500 meters (line-of-sight) for any of their DMX512 compliant equipment, and leave any worries behind concerning loss of signal due to its built-in FHSS technology (Frequency Hopping Spread Spectrum). FHSS are frequency hopping techniques, in which the transmitter jumps from sub-channel to another at a very rapid pace. This technique was first used by the U.S. military precisely because they are difficult to disrupt, and unless you knew the frequency hopping sequence, practically impossible to intercept.
Setting up a wireless DMX system with LightCaster W-DMX is a very simple procedure, with each of the two units having only a single function control button and a power, DMX, and mode status LED indicator. Users simply power on a transceiver to act as the transmitter, choose one of three modes (frequencies), then power on any number of receivers and the system will automatically sync together. For multiple transmitter setups, it's as simple as choosing a different frequency group for the next transceiver, then powering up the next receiver or a group of receivers. An unlimited number of receivers can be controlled by each transceiver, each one able to control 512 channels of DMX (1 universe).
Endless setup possibilities can be achieved by using either point-2-point, or multipoint-2-multipoint operation:
Basic point-2-point systems are used when you want to send wireless DMX data from a console to a single receiver. As the receiver accepts all 512 DMX channels from the transceiver, you can easily daisy chain more fixtures by cable from the fixture with the wireless connection.
Up to 16 universes of DMX can be transmitted simultaneously using a multipoint to multipoint approach. All receivers in a multipoint system will listen only to the designated transmitter without any delays or interference from the systems working alongside.
Each LightCaster W-DMX unit also features an integrated clamp for mounting to 2" truss, is housed in a durable anodized aluminum casing, and equipped with a POWERCON compatible power connection, so no wall wart is necessary.
LightCaster W-DMX units are now available for immediate shipping!
LightCaster W-DMX Features:
- One button operation 2.4Ghz W-DMX wireless system.
- Compatible with all DMX512 compliant equipment.
- FHSS (Frequency-Hopping Spread Spectrum) technology.
- POWERCON-compatible power input.
- Integrated clamp for mounting to 2" truss.
Blizzard Lighting LightCaster W-DMX Receiver Specifications
Transmit power (transceiver unit): 100mW
Receiver sensitivity: 98dBm
Max Operating Range: 500 meters (line-of-sight)
Latency: < 5mS
Antenna type: 2dBi
Universes: 1 per transmitter, max. 16
2-year limited warranty.
The Box Includes:(1) Blizzard Lighting LightCaster W-DMX Wireless DMX Receiver
(1) Transceiver or Receiver Unit
(1) Totally Awesome AC Power Cord
(1) Pretty Swell Pole Mounting Brackets
(1) An Ever-So-Handy 2dBi Antenna
(1) This Lovely User Manual
