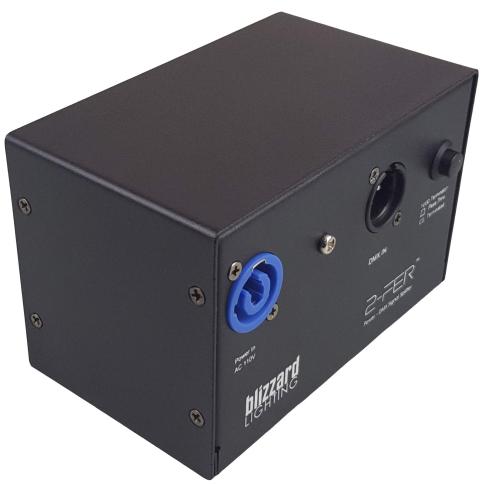

Blizzard Lighting 2-Fer 3 Pin Power and DMX Signal Splitter [2FER-3PIN]
About This Product
2-Fer is a 2-way power splitter and 2-way DMX splitter, all housed together in 1 convenient unit. It’s a great accessory for use in any situation where powerCON power cables and DMX cables are frequently used, and also a match made in heaven with Blizzard’s DMX-PC (DMX and powerCON compatible) combo cables.
These units are highly reliable and are fitted with 1x 20A powerCON compatible input and 2x 20A powerCON compatible outputs (flush mounted), and they come with 3-pin DMX connectors with 1 signal input and 2 signal outputs. There is also a signal status LED indicator (red power/blue signal) above each output.
The DMX connectors on 2-Fer splitters are 100% optically isolated, and the units are also equipped with a built-in 120Ω terminator/pass thru switch for completing a DMX chain properly. There is even a threaded hole on the side of the box for secure clamp mounting on truss.
2-Fer Power and DMX signal splitters are very well-built and reliable pieces of professional equipment, designed to make your life and lighting setup a whole lot simpler.
And of course, 2-Fer 2-way power and DMX splitters are backed by Blizzard’s 2-year warranty.
- 1x DMX signal input.
- 2x DMX signal outputs.
- 1x powerCON compatible input.
- 2x powerCON compatible outputs.
- Optically isolated XLR connectors.
- Flush mounted power connectors.
- 3-pin XLR connectors.
- 120Ω terminator/pass thru switch.
- 12/14 AWG internal wiring.
- Output power/signal LED status indicators.
- Housing Material: Steel.
- Threaded clamp mounting hole (M10).
- Well-built and highly reliable.
Blizzard Lighting 2FER-3PIN Specifications:
Operating Voltage: 110-240VAC, 50-60 Hz
Weight & Dimensions:
Length: 5.4 inches (136 mm)
Depth: 3.3 inches (82 mm)
Height: 3.5 inches (88mm)
Weight: 2.5 lbs (1.1 kg)
(1) Blizzard Lighting 2FER-3PIN 2-Fer 3 Pin Power and DMX Signal Splitter
