Be the first to review this product

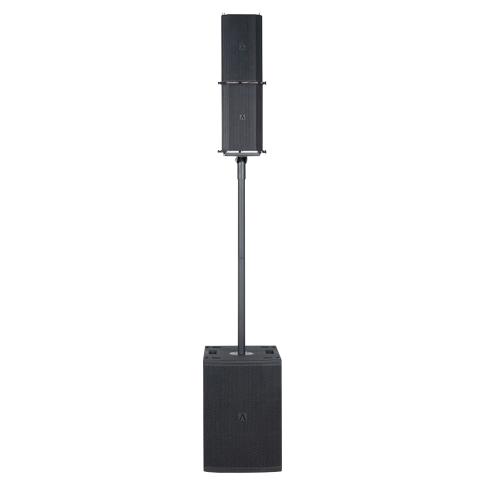

Avante Imperio System 1 Speaker and Subwoofer Pole Mounted Portable Sound System
SKU
IMPERIO-SYSTEM1
$1,619.99
Item Backordered
Expected November 30, 2024
Only at IDJNOW
Avante Imperio Speaker
240W RMS Class D Power Amplifier with dual 4.75" woofers. Part of the Imperio Mini Line Array Series.
Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.
Avante Imperio Sub 10" 400 Watt Subwoofer
10-inch, 400 Watt Subwoofer with Class D Digital Amplifier. Part of the Imperio Mini Line Array Series.
Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.
The system may be configured in a variety of ways with multiple Imperio Subs and eight Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.
Avante Imperio Pole with Sub Pole Adapter
Imperio pole and sub pole adapter kit used to stack two Avante Imperio speakers to an Avante Imperio Sub.
Avante Imperio Speaker Specifications:
Amplifier:- 240W Class RMS D Amplifier Module.
- Switching Power Design.
- LED Power / Signal / Clip Indicator.
- 24-bit DSP Selectable Configurations.
- Input: 1x 3pin XLR / powerCON (NAC3FCA.)
- Output: 1x 3pin XLR powerCON (NAC3FCB.)
- Volume: Selectable Input Sensitivity Dial.
- Power Input: 100-240V ~ 50/60Hz.
Speaker:
- 2x 4.75" Neodymium Woofer with 1-inch voice coil.
- 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology.)
- Type: 2-Way Active Closed Design.
- Frequency Response: 150Hz – 20KHz.
- Impedance: 4 Ohm.
- Max Output SPL: 117dB (single box measured on Axis @1m.)
- Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB.
- Cabinet: ABS Plastic.
- Grill: 1.0mm steel.
- Splay Angles: 0, 4, 8, & 12-degrees.
- Integrated Rigging: Yes.
- Dispersion Angle: 90-degree x 15-degree.
- Dimensions (LxWxH): 7.3"x8.8"x12.8" / 184.8x224x324mm.
- Weight: 14 lbs. / 6.3 kg.
Avante Imperio Sub Specifications:
Amplifier:
400 watts RMS, Class D Power Amp, 800 watts Peak Power.
100-120V / 220-240V ~ 50/60Hz (country specific.)
LED Power / Signal / Clip Indicator.
Input: 1x 3pin XLR powerCon (NAC3FCA.)
Output: 1x 3pin XLR powerCon (NAC3FCB.)
Phase Switchable (0 / 180.)
Internal Selectable X-Over 90Hz or 120Hz.)
Volume Control Dial.
Driver:
1x 10" Woofer w/2.5" Voice Coil.
123dB (at max output.)
Plywood Cabinet, black finish.
6th Order Bandpass Design.
M20 Screw Pole Mount.
1.2mm Steel Grill.
Dimensions: L 13.8" x D 18.3" x H 20.7".
Weight 49.6 lbs.
Each Imperio System 1 Retail Box Includes:
(2) Avante Imperio Speakers (IMP092)
(1) Avante Imperio Sub 10" 400 Watt Subwoofer (IMP400)
(1) Avante Imperio Pole with Sub Pole Adapter (IMP194)
