Avante Imperio Speaker

240W RMS Class D Power Amplifier with dual 4.75" woofers. Part of the Imperio Mini Line Array Series.

Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.



Avante Imperio Sub 10" 400 Watt Subwoofer

10-inch, 400 Watt Subwoofer with Class D Digital Amplifier. Part of the Imperio Mini Line Array Series.

Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.

The system may be configured in a variety of ways with multiple Imperio Subs and eight Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.



Avante Imperio Flybar LG Mounting Accessory for Avante Imperio Series Speakers and Subwoofers

Accessory for the Avante Imperio Series. Used with the Imperio and Imperio Sub speakers.



Avante Linkpin 4 Link Pins for the Avante Imperio Series (Set of 4)

Set of 4 linkpins for the Avante Imperio Series. Linkpins are used when flying Imperio speakers.

Avante Imperio Speaker Specifications:
Amplifier:
  • 240W Class RMS D Amplifier Module.
  • Switching Power Design.
  • LED Power / Signal / Clip Indicator.
  • 24-bit DSP Selectable Configurations.
  • Input: 1x 3pin XLR / powerCON (NAC3FCA.)
  • Output: 1x 3pin XLR powerCON (NAC3FCB.)
  • Volume: Selectable Input Sensitivity Dial.
  • Power Input: 100-240V ~ 50/60Hz.

Speaker:
  • 2x 4.75" Neodymium Woofer with 1-inch voice coil.
  • 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology.)
  • Type: 2-Way Active Closed Design.
  • Frequency Response: 150Hz – 20KHz.
  • Impedance: 4 Ohm.
  • Max Output SPL: 117dB (single box measured on Axis @1m.)
  • Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB.
  • Cabinet: ABS Plastic.
  • Grill: 1.0mm steel.
  • Splay Angles: 0, 4, 8, & 12-degrees.
  • Integrated Rigging: Yes.
  • Dispersion Angle: 90-degree x 15-degree.
  • Dimensions (LxWxH): 7.3"x8.8"x12.8" / 184.8x224x324mm.
  • Weight: 14 lbs. / 6.3 kg.


Avante Imperio Sub Specifications:

Amplifier:
400 watts RMS, Class D Power Amp, 800 watts Peak Power.
100-120V / 220-240V ~ 50/60Hz (country specific.)
LED Power / Signal / Clip Indicator.
Input: 1x 3pin XLR powerCon (NAC3FCA.)
Output: 1x 3pin XLR powerCon (NAC3FCB.)
Phase Switchable (0 / 180.)
Internal Selectable X-Over 90Hz or 120Hz.)
Volume Control Dial.

Driver:
1x 10" Woofer w/2.5" Voice Coil.
123dB (at max output.)
Plywood Cabinet, black finish.
6th Order Bandpass Design.
M20 Screw Pole Mount.
1.2mm Steel Grill.
Dimensions: L 13.8" x D 18.3" x H 20.7".
Weight 49.6 lbs.

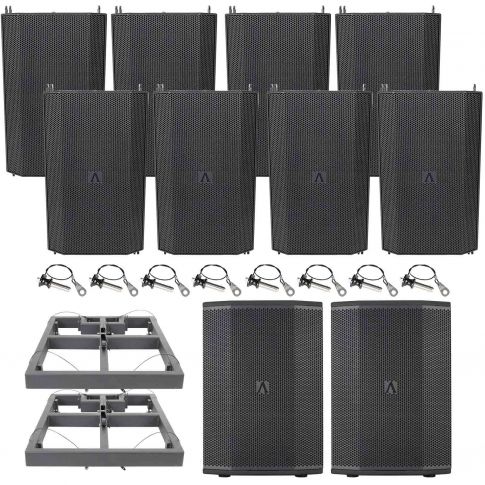

Each Imperio MAX Retail Box Includes:
(8) Avante Imperio Speakers (IMP092)
(2) Avante Imperio Sub 10" 400 Watt Subwoofers (IMP400)
(2) Avante Imperio Flybar LG Mounting Accessories for Avante Imperio Series Speakers and Subwoofers (IMP265)
(8) Avante Linkpin 4 Link Pins for the Avante Imperio Series (IMP340)
