Be the first to review this product

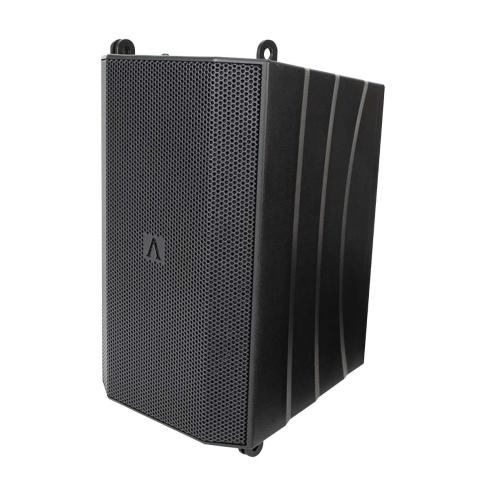

Avante Audio IMPERIO 240W Active Line Array Speaker with Class D Power Amplifier
SKU
IMPERIO
$579.99
Item Backordered
Questions? Call 1-800-355-7746 or Chat below
Only at IDJNOW
The Imperio is a 240W RMS Class D Power Amplifier with dual 4.75" woofers. Part of the Imperio Mini Line Array Series.
Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.
Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.
Avante Audio IMPERIO Product Specifications:
Amplifier:
240W Class RMS D Amplifier Module
Switching Power Design
LED Power / Signal / Clip Indicator
24-bit DSP Selectable Configurations
Input: 1x 3pin XLR and Locking Power Connector
Output: 1x 3pin XLR and Locking Power Connector
Volume: Selectable Input Sensitivity Dial
Power Input: 100-240V ~ 50/60Hz
Speaker:
2x 4.75" Neodymium Woofer with 1-inch voice coil
6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)
Type: 2-Way Active Closed Design
Frequency Response: 150Hz - 20KHz
Impedance: 4 Ohm
Max Output SPL: 117dB (single box measured on Axis @1m)
Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
Cabinet: ABS Plastic
Grill: 1.0mm steel
Splay Angles: 0, 4, 8, & 12-degrees
Integrated Rigging: Yes
Dispersion Angle: 90-degree x 15-degree
Dimensions (HxWxD): 12.8"x7.3"x8.8" / 324x184.8x224mm
Weight: 14 lbs. / 6.3 kg.
Each IMPERIO Retail Box Includes:
(1) Avante Audio IMPERIO 240W Active Line Array Speaker with Class D Power Amplifier
(1) 2 ft (0.6m) powerCON Power Link Cable
(1) 2 ft (0.6m) 3pin XLR Signal Cable
(2) Linkpin 1 Locking-Pins
(1) User Manual
