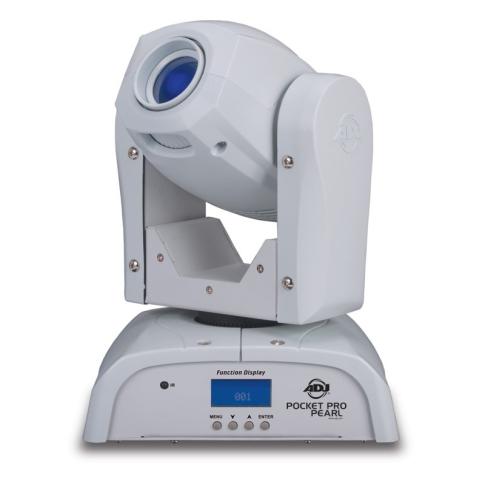

American DJ Pocket Pro Pearl 25-Watt LED Mini Moving Head in White
About This Product
One of ADJ’s best-selling products over recent years is undoubtedly the Inno Pocket Spot. This lightweight, compact, and incredibly affordable fixture brought moving head lighting effects within the budget of many mobile entertainers and small venues for whom this type of lighting had previously been unattainable. Now American DJ is pleased to announce the next evolution in small-format, low-cost moving head fixtures, the ADJ Pocket Pro. Building on the success of its predecessor, this ground-breaking fixture offers increased brightness and the addition of interchangeable GOBOs with only a slight increase in size and weight, and no increase in retail price.
The Pocket Pro is truly a transformed fixture from the base up, compact and affordable. On the top of the head is a manual focusing wheel that allows users easy and precise focusing of the GOBOs so they look crisp in a variety of applications. The Pocket Pro utilizes a bright white 25-Watt LED light-source, which offers twice the power of the original Inno Pocket Spot (which had a 12-Watt LED). The light from this potent LED is then focused through an advanced optical system to create vivid surface projections and impactful beams of light that belie the unit’s compact form.
Not only does this improved fixture provide incredible output, it also offers replaceable GOBOs. This is an advanced feature that is unprecedented on a moving head of this size and at such a low price-point. The unit is fitted with a 7 position (+ open) GOBO wheel pre-loaded with a collection of detailed patterns some of which are particularly suited to surface projection while others are ideal for creating mid-air effects. However every one of these GOBOs can easily be replaced thanks to the unit’s easy-access hinged-case design. Once the fixture has been opened up, the pre-installed GOBOs can easily be slid out and replaced with alternative patterns. Four useful additional GOBOs – including one depicting a pair of rings surrounded by a heart that is perfect for wedding celebrations – are supplied with the unit, while custom patterns can also be used. The fixture is compatible with any metal GOBO with an outer size of 18.4mm and a visible area of 13mm.
American DJ set out to find the perfect solution to make the Pocket Pro brighter than its predecessor with a LED source that would produce the output and punch needed in most smaller venues. They’ve powered the Pocket Pro with a mighty 25W LED engine with crisp optics. Like the Focus Spot Series, the Pocket Pro is designed with the EZ OPEN cover giving full access to the GOBO Wheel. Its compact size and light weight make it ideal for mobile entertainers, small club, and bars, roller rinks, bowling centers or perfect for events and custom GOBO projection in a lounge or retail environment.
The fixture features a separate color wheel, which is loaded with seven vibrant color filters (plus open white): red, orange, yellow, green, UV, blue and pink. Further control over the unit’s output is also provided by a 0-100% digital dimming function, with five selectable dimming curves, and a digital shutter function which provides variable speed strobing (between 0.3 and 19Hz) as well as random pulse effects. With a beam angle of 15-degress, the Pocket Pro is ideally suited to creating mid-air effects and projecting patterns in small-to-medium-sized venues. It is fitted with a manually adjustable lens that can be used to ensure sharply-focused GOBO projections at varying distances. Its compact size and light weight makes it ideal for mobile entertainers, small club and bars, venues with low ceilings, roller rinks, bowling centers or any mobile production. Just like its predecessor, the Inno Pocket Spot, the Pocket Pro is incredibly compact and light weight. With measurements of just 6.37” x 7.87” x 11.30” / 162 x 200 x 287mm (LxWxH), the unit requires little storage space when used as part of a mobile lightshow and can be permanently installed into venues even where ceiling height is limited. With a weight of just 7.3 lbs. / 3.6 kgs. the unit is easy to carry and rig, using either its rubber feet or the supplied Omega mounting bracket. The unit is fitted with an upgraded powerCON power connector on the rear panel that locks into place. So, there will be no worries about a power cord unplugging from the unit, vibration knocking your connection loose, or not having a secure AC connection. This fixture features seven colors plus white and 7 replaceable GOBOs (plus 4 additional GOBOs included in the box). The GOBOs and colors are on separate wheels. These features are not found in moving heads of this class.
The fixture’s moving yoke offers a wide pan range of 540-degrees as well as 230-degrees of tilt movement. 16-bit motors allow for smooth movements and accurate positioning, while the unit’s small size and low weight also mean that it is capable of lightning-fast movements. When it comes to control, the unit offers a wide variety of options. Control methods include: Sound active with 4 built-in shows, a DMX controller to create your own light shows, Airstream DMX Bridge, or myDMX control software. It has three operational modes – DMX, Sound Active and Internal Show – which can easily be selected from the 4-segment LED display positioned on the front of the fixture. A choice of four separate pre-programmed sequences can be selected for the Internal Show mode, while a choice of two channel modes (11 or 13) is provided for DMX operation. Multiple fixtures can also be linked together for Master/Slave operation – in either Sound Active or Internal Show mode – and the unit’s Pan/Tilt Inversion feature can be used to create contrasting movements for added excitement. The fixture is also compatible with ADJ’s UC IR infrared wireless remote as well as the Airstream IR iPhone / iPad control system (both sold separately).
American DJ Pocket Pro Pearl 25-Watt LED Mini Moving Head in White Features:
- DMX-512 Protocol Compatible (11 DMX Channels or 13 Channels.)
- 7 Colors + White.
- Gobo Wheel with 7 Replaceable Gobos + Spot.
- 3 Operating Modes - Sound Active, Show Mode, & DMX Control.
- Internal Microphone.
- Digital Display for Address and Function Setting.
- 4 Preprogrammed Shows.
- UC IR Compatible (Not Included) & Airstream App Compatible.
American DJ Pocket Pro Pearl Specifications:High output mini Moving Head with a bright white 25W LED source
7 Colors + white
7 replaceable gobos + spot
Includes kit of 4 additional GOBOs
Separate color & gobo wheels
3 Operational modes: DMX, Sound Active & Internal Show control modes
2 DMX channel modes: 11 & 13 Channel modes
4 Built-in shows
Gobo Shake effect
Gobo scroll mode
Beam Angle: 15-degrees
540° pan / 230° tilt (16-bit)
Pan /Tilt Inversion mode
5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
Shutter: Pulse effect; random strobe slow to fast
Dimming: 0% - 100%
Omega bracket included
Linkable: DMX via 3-pin XLR cable
GOBO size: 18.4 mm (13mm viewable)
Optional ADJ UC IR Compatible (Not Included) and Airstream IR Compatible (transmitter Not included)
Power consumption: 53W
Multi-voltage Operation: AC 100 - 240V, 50/60Hz
LED Source: 25W White LED source (Rated at approximately 50,000 hrs)
Dimensions (LxWxH): 6.37” x 7.87” x 11.30” / 162 x 200 x 287mm
Weight: 7.3 lbs. / 3.6 kgs.
(1) American DJ Pocket Pro Pearl 25-Watt LED Mini Moving Head in White
(1) powerCON power cord
(4) Additional GOBOs
