American DJ Pinpoint Gobo Battery Powered LED GOBO Projector & Case Package
About This Product
American DJ Pinpoint Gobo Battery Powered LED GOBO Projector
Communicate your message in light! The ADJ PinPoint Gobo is a battery powered GOBO projector powered by a 10-Watt cool white LED. It includes 4 standard removable GOBOs, 5 color gels and a frost filter to defuse the beam for wider washes of light. When the GOBO is remove it may be used as a pinspot to spot tables, decor, architecture or used for special effects.
The PinPoint Gobo has an easy replaceable GOBO holder so that user may interchange the supplied GOBOs or to insert custom GOBOs. It features a magnetic bracket so the fixture may be quick attached to metal, plus a X-Clip mount is also included to attach to the metal in drop down ceilings.
The battery has a charge time of 6 hours to achieve a full charge. The battery life is rated at 5 hours (full on) or 18 hours when set in energy saving mode. On the side of the fixture are sliders to manually adjust the focus and beam angle.
Combat X Heavy Duty 16” Water-resistant Storage Case with Padded Foam Interior
Use a hard-sided case to protect valuable items. High-density pluck foam allows you to customize the interior to match the outline of the contents. Shockproof, water-resistant case has room for up to eight reels, depending on reel style. Padlock tabs for added security.
- Hard-sided case protects valuable reels.
- Pluck foam lets you customize the interior.
- Shockproof and water-resistant.
All Combat X cases have thick wall construction, secure latches and a high density foam.
American DJ Pinpoint Gobo Specifications
- Rechargeable battery powered, bright 10W CW 4-in-1 LED Pinspot / Gobo Projector
- 12-25-degree variable beam
- Manual focus
- Compact high-tech metal case design
- Drop in GOBO Slot (for metal gobos only)
- Long-life LED: 50,000 hour LED life
- Power consumption: 11W
- Includes magnetic bracket for easy quick install on metal
- X-CLIP Bracket for drop ceiling frame mounting
- Includes 4 metal GOBOs and 5 color filters
- Replaceable Gobo size: 25.8mm; Viewable size: 19mm
- Gobo Thickness: 1mm max.
- Includes Frost Filter & 4 Color Filters: Red, Green, Blue & Amber
- Includes Power Adapter (DC 8.7V 1A)
- Light Output: 876 LUX @2M; 203 LUX @4M (17-degree beam)
- Refresh Rate: 1KHz
- ADJ UC IR Remote Control & ADJ LED RC3 Control (Sold Separately) & Airstream IR compatible
- Battery Charge Time: 6.5 Hours (With POWER switch off)
- Battery Life: 4.5 Hours (Full On) / 12.5 Hours (In Energy Saving Mode w/ Full Charge
- Dimensions (LxWxH): 9.75" x 4" x 2.75" / 245 x 102 x 70mm
- Weight: 3 lbs. / 1.1 kgs.
- Battery Charge Time: 6.5 Hours (Load Switch Off)
- Battery Life: 4.5 Hours Full On in 10W Mode, 10 Hours in 3.3W Mode, 12.5 Hours in Energy Saving Mode (Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
- Battery Type: Fixed Lithium Battery
- Battery Energy: 32.56WH (Watt Hours)
- Battery Weight: 0.4lbs. / 0.19kg
- Battery Voltage: 7.4V
- Battery Capacity: 4.4AH
- Total Lithium Ion Cells: 4pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
Combat X Heavy Duty 16” Storage Case Specifications
Exterior Length: 16.75"
Exterior Width: 6"
Exterior Height: 14.5"
Number of Compartments: 1
Plastic Type: Polypropylene
Foam Interior: yes
Latch Type: Plastic Tension
Handle Type: Swivel
Label: No Label

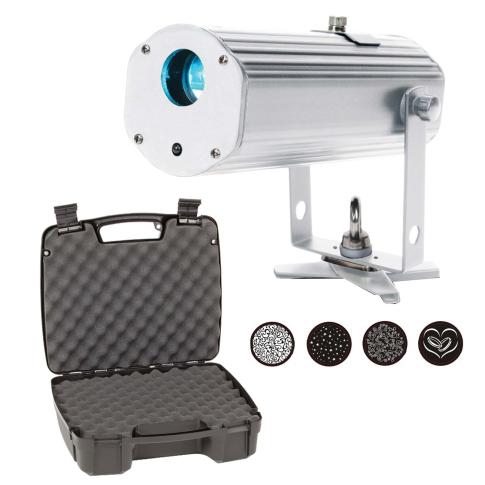

This Package Includes:
(1) American DJ Pinpoint Gobo
(1) Combat X Heavy Duty 16” Water-resistant Storage Case
Each Pinpoint Gobo Box Includes:
(1) American DJ Pinpoint Gobo
(1) Frost Filter
(4) Metal GOBOs
(5) Color filters
(1) Power cord
(1) User guide
