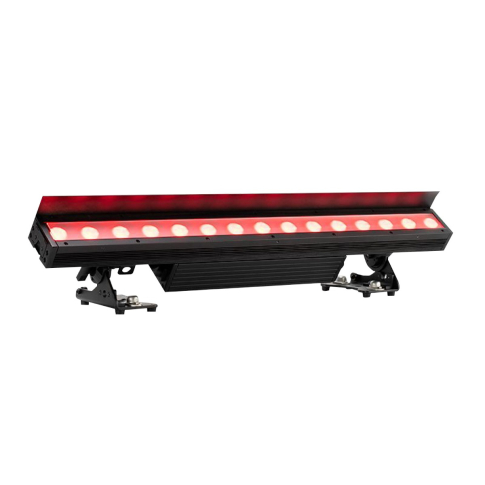

The Encore LB15IP, part of ADJ's Lime LED Series, utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or one of six preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of color possibilities, while 64 built-in macros facilitate easy selection of popular options. The LP15IP features 15 LEDs, with an equally spaced linear arrangement, which can each be controlled independently to allow for the creation of pixel-mapped effects.

With a robust metal construction, the LB15IP is designed for use in professional entertainment lighting environments. It has an IP65 rating, which means that it is sealed to prevent the ingress of liquid, snow, dust, and sand. This makes it suitable for temporary outdoor use as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt. It is supplied with two variably-angled brackets – one on each side – that can be used to stand the fixture directly on the floor or (with the attachment of the included Omega brackets) hang it from a truss or lighting rail. The unit is also supplied with a detachable glare shield and features locking power input and output sockets, allowing multiple fixtures to be connected to a single power outlet.

American DJ ENCORELB15IP Product Specifications:

Source:
15 x 20-Watt Quad RGBL LED's (4-IN-1: Red, Green, Blue & Lime)

Photometric Data:
Beam angle: 11° (25° with diffusion filter attached)
CRI: 89.3
CRI R9: 69
Lumens: 5982
Linear Color Temperature Control (2700K to 7000K)
Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)

Effects:
Individual Pixel Controllable
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros

Control / Connections:
4-button, DMX digital display on rear panel
5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
10 DMX Modes: 4, 7, 8, 13, 16, 60, 63, 72 & 120 channel
Adjustable fan modes
WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Construction:
IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All metal construction
IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin DMX connections

Electrical / Thermal:
Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 5 @ 120V, 10 @ 220V
Max power: 198W

Dimensions / Weight:
Dimensions (LxWxH) 5.99" x 36.1" x 8.33" / 152x914.9x211.55mm
Weight: 19.5 lbs. / 8.85 kg.

Approvals / Rating:
cETLus Pending
IP65

Each ENCORELB15IP Retail Box Includes:

(1) American DJ ENCORELB15IP Lime Par Series Linear RGBL LED Wash Fixture
(1) Glare Shield
(1) Locking Outdoor Power Cord
