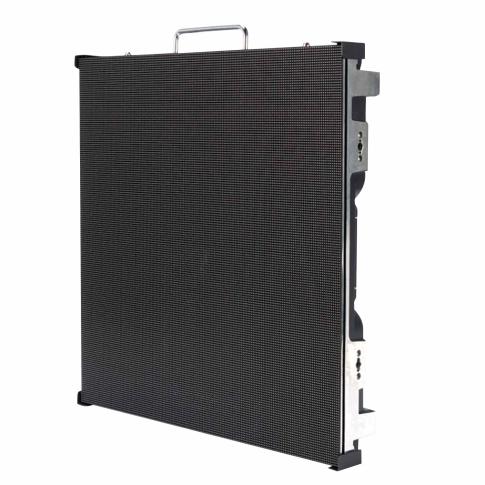

American DJ AV2X High Resolution 2.97mm Pixel Pitch 3-in-1 RGB LED Video Panel

ADJ AV2X High Resolution 2.97mm Pixel Pitch 3-in-1 RGB LED Video Panel

SKU #: AV2X
$1,259.99
As low as $126/mo or 0% APR with Affirm Logo
Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The AV2X is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED. The panel can curve in convex or concave +/-5°. The brightness is 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The AV2X connections include powerCon In/Out and Ethercon In/Out. This panel also features a Novastar A5s receiving card. The AV2X features moveable corner protectors to help protect the corners. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running. Up to 8 AV2X video panels fit inside the AV2FC flight case.

With a brightness of 1000 NITS and a 2.97mm pixel pitch, the AV2X is a cost effective, bright, high resolution video panel designed for indoor use. Although the 3-in-1 RGB SMD2121 LEDs create an impressive brightness of 1000 NITS, with its 0-100% adjustable brightness, the intensity of the screen can be reduced for all indoor applications. The 2.97mm pixel pitch translates to 168 x 168 LEDs, equivalent to 112,896 dot/m2, with a wide viewing angle of 160°. Each AV2X LED Video Panel is composed of 4 modular LED panels, which allows for easier serviceability. Additionally, the AV2X LED Video Panels can connect horizontally for curved-in or curved-out screen surfaces (convex/concave

ADJ AV2X Specifications:
General:
Pixel Pitch: 2.97mm (0.17")
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 168x168; 112896 per square meter
Size: 19.75" x 19.75" x 3" / 500 x 500 x 73mm
Module Quantity: 4
Weight: 17.64 lbs. / 8kg.

Mechanical Ratings:
Surface Flatness: Gaps<0.5mm

Optical Ratings:
Brightness: 1000 NITS
View Angle: Horizontal 160°/Vertical 120° @ 9.75 ft. (2.97m)
Gray Scale / Display Color: 14-bit
Brightness Adjustment: 0~100% 100 Levels
Processing: 14-bit

Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 115W/per panel
Ave. Power Consumption: 35W/per panel
Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/21
Refresh Rate: ?1920Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <100m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet

Environmental:
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: cETLus

Each AV2X Retail Box Includes:
(1) ADJ AV2X High Resolution 2.97mm Pixel Pitch 3-in-1 RGB LED Video Panel
(1) Quick-release power supply with 4X receiver card modules
(1) Cabinet to Cabinet Data Link Cables (EtherCON Connectors)
(1) powerCON Link Cables
(1) powerCON Main Power Cables
