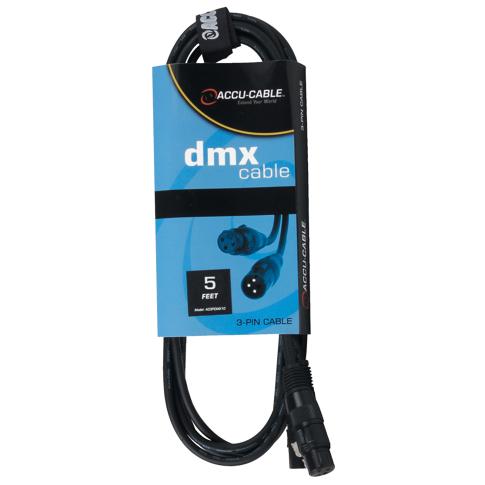

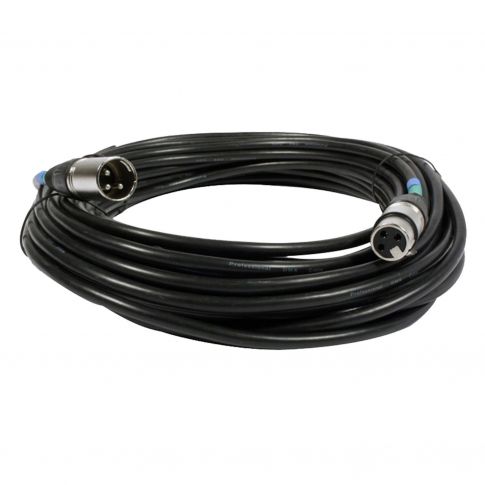

ADJ AC3PDMX5 5FT 3-Pin DMX Cable
Quality cables from ADJ’s Accu-Cable Brand.
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.
ADJ / Accu-Cable 3 Pin DMX Cable Specifications
Physical Characteristics:
Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354”
• Conduct or Material: TC-Tinned Copper
Insulation:
• Insulation Material PE Polyethylene
Lay Length:
• Lay Length: 2.5”
• Direction: Left Hand Lay
• Twists: 4.8 per foot
Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055”
• Pair Color Code: Black/White
Outer Shield:
• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid
Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter:
• Overall Nominal Diameter: .229”
The AC3PDMX5 Box Includes:
(1) ADJ AC3PDMX5 5FT 3-Pin DMX Cable
