ZED-10FX has an essential selection of 16 time-delay effects, designed for small groups who don't want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point - this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing - in fact, it's just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS. ZED-10FX's pre-amps are similar in design to our MixWizard range of mixers, but with a twist. Inputs 3 & 4 have a high impedance jack input capable of taking either a normal line level or a low level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain “Boost” switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character.

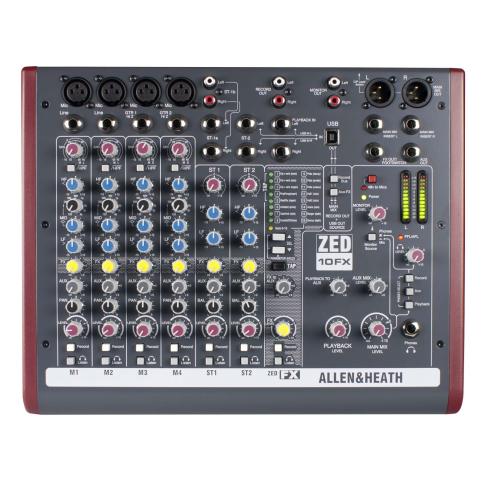

Allen & Heath ZED-10FX Multipurpose Mixer Features:
- 4 mic/line inputs, 2 with Class A FET high impedance inputs.
- Neutrik mic XLR.
- Neutrik 1/4 inch jacks.
- 3 band EQ with MusiQ.
- 1 pre-fade Aux send.
- 1 FX send.
- Sound image pan.
- Illuminated PFL indicator.
- Stereo returns & playback.
- All inputs with level control.
- 12 bar meters.
- Responsive 3-band, swept mid EQ with MusiQ.
- 2 stereo sources with MP3 player compatibility.
- Separate 2-track record outputs.
- Stereo playback input for 2-track replay.
- XLR main stereo outputs with inserts.
- Comprehensive monitoring.
- Configurable USB stereo audio in/out.
- Stereo monitor outs.
- 48V microphone phantom power.
- DI level switching for sub mixing.
Allen & Heath ZED-10FX Product Specifications:
Operating Levels - Input | |
---|---|
Mono channel (XLR) Input | -10 to –60dBu for nominal (+11dBu in max) |
Mono channel Line Input (Jack socket) | +10 to –40dBu (+31dBu maximum) |
Stereo Input (Jack or phono sockets) | 0dBu nominal (control = Off to +15dB) |
Operating Levels - Output | |
L/R Outputs ( XLR) Normal/DI out | 0dBu/-30dBu +21dBu/-9dBu maximum. |
Aux & FX Outputs (Jack sockets) | 0dBu nominal. +21dBu maximum. |
Record & Monitor Outputs (phono sockets) | 0dBu nominal. +21dBu maximum. |
Frequency Response | |
Mic in to Mix L/R Out, 30dB gain | +0.5/-1dB 10Hz to 30kHz. |
Line in to Mix L/R out 0dB gain | +0.5/-1dB 10Hz to 25kHz |
Stereo in to Mix L/R out | +0.5/-1dB 10Hz to 30kHz |
THD+n | |
Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out | 0.002% |
Mic in to Mix L/R Out, 30dB gain 1kHz | 0.01% |
Line in to Mix L/R out 0dB gain 0dBu 1kHz | 0.003% |
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz | 0.002% |
Gtr Input to Mix L/R Out, 0dBu, Boost OUT | 0.015% |
Gtr Input to Mix L/R Out, 0dBu, Boost IN | 2% Second Harmonic |
Headroom | |
Analogue Headroom from nominal (0Vu) | 21dB |
USB in & out headroom from nominal (0Vu) | 14dB |
Noise | |
Mic Pre EIN @ max gain 150R input Z 22-22kHz | -127dBu |
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz | -96dBu |
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz | -96dBu |
USB Audio CODEC (Coder/Decoder) | |
USB Audio In/Out | USB 1.1 compliant 16bit. |
Sample Rate | 32, 44.1, or 48kHz |
