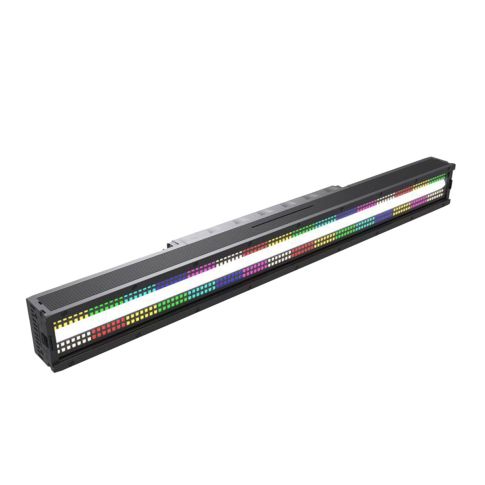

The ADJ Jolt Bar FXIP is an IP65-rated professional linear LED fixture that delivers Lighting Designers huge output as well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-colored chase effects in one versatile unit. It is a highly flexible fixture that can be used to create a wide variety of effects ideal for concert productions, festival stages and other largescale events.
ADJ JOLT BAR FXIP IP65 RGBCW LED Linear Strobe/Effect Fixture Features:
- 32 x RGB LED Zones.
- 16 x Cool White LED Zones.
- 25 Built-in RGB LED Program Macros.
- 9 Built-in Cool White LED Program Macros.
- 180 degree mounting bracket system.
- IP65-rated (for temporary outdoor use.)
- Aria X2 Wireless DMX Built-in.
- Frost Lens Assembly.
- Includes Alignment Bracket to attached units together.
ADJ JOLT BAR FXIP Product Specifications:
Light Source:
448 x 0.5-Watt RGB SMD LEDs + 112 x 5-Watt Cool White SMD LEDs
78° Beam Angle
117° Field Angle
Color LEDs: Red: 620-630nm; Green: 515-525nm; Blue: 460-470nm
Cool White LEDs: 6900-7400K
CRI: 89
50,000 Hour Average LED Life
Control:
Control Protocols: DMX, Aria X2 and RDM
13 DMX Channel Modes: 6, 9, 13, 16, 18, 32, 32A 38, 43, 64, 78, 112 and 126
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
0-100% Smooth Dimming
Strobe, Shutter & Pulse Control
Max Strobe Rate 25Hz; Min Strobe Rate: 0.35Hz
Refresh Rate: 900Hz - 25kHz
With Wired Digital Communication Network
Display: OLED Menu (with 4 touch buttons)
Connections:
Data: IP65-rated locking 5-pin DMX In/Out
Power: IP65-rated Locking In/Out Sockets
Electrical:
100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 214W @120V; 208W @230V
Max Power Link: 6pcs @120V; 12pcs @230V
Fuse Protected: T5A/250V Glass Fuse (5*20MM)
Dimensions / Weight:
Length: 5.42" (137.5mm)
Width: 39.4" (1000mm)
Height: 4.19" (106.5mm)
Weight: 20.5 lbs. (9.3kg)
Approvals and Ratings:
CE
cETLus (Pending)
IP65
Each JOLT BAR FXIP Retail Box Includes:
(1) ADJ JOLT BAR FXIP IP65-Rated Professional RGBCW LED Linear Strobe/Effect Fixture
(1) IP65-rated 6ft (1.83m) Locking Socket to Edison Power Cable (U.S.)
(1) Frost Filter
(2) Omega Receiver Brackets (Omega Clamps sold separately)
