(4) American DJ Focus Spot 4Z 200W LED Moving Head Spot Fixtures with Road Case Package

SKU
FOCUSSPOT4Z-4PKCASE
Special Price $6,235.40 Regular Price $6,563.87
Item Backordered

Questions? Call 1-800-355-7746 or Chat below

Free Shipping
Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746



I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700



I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

The new Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has locking powerCON In and out connectors to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (17-inch high and one 18 pounds).

American DJ Focus Spot 4Z Moving Head Spot Features:

  • 200W Cool White LED Engine (50,000 hr.)
  • 8 Colors + white.
  • 6 Rotating, Replaceable GOBOs + Open.
  • Zoom Range: 11 ~ 22-degrees.
  • Focus: Motorized.
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular.
  • powerCON In/Out to daisy chain power.
  • 3-pin DMX In/Out.
  • USB firmware update port.
  • Multiple DMX Control Channels Mode.
  • Fine Pan & Tilt: 16-Bit.
  • Dimming & Fine Dimming (16-Bit) : 0-100% Electronic.
  • 6 Dimming Modes: Standard.
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing.)
  • Dimensions (LxWxH): 18" x 10.97" x 7.15" / 457 x 279 x 182mm.
  • Weight: 18.29 lbs. / 8.3 kg.



ADJ AV6 3FT Power Link Cable [PLC3]

AV6 System 3' power link cable, cabinet to cabinet, horizontal and vertical.

American DJ Focus Spot 4Z Specifications:
Light Source:
200W Cool White LED Engine (50,000 hr.)

Features:
Motorized Focus
Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
0-100% smooth dimming
Various strobe speeds
USB firmware update port
2 cooling fans

Color Wheel:
8 dichroic colors + white

GOBO Wheel:
6 aluminum GOBOs + open
All GOBOs removable & rotatable
GOBO Shake Effect
GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Prism Wheel:
Prism Wheel 1: Rotatable 5-facet Linear
Prism Wheel 2: Rotatable 6-facet Circular
Prism Indexing

Control:
3 DMX Channel Modes: 16/18/22 Channels
Color LCD display with 6-button function menu
Data In/Out: 3-pin DMX
Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)
Control Mode: DMX512 or internal programs
6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
0-100% smooth dimming
Various strobe speeds
USB firmware update port
With Wired Digital Communication Network

Pan/Tilt:
Pan: 540-degrees
16-bit Fine Pan: 630-degrees
Tilt
16-bit Fine Tilt

Electrical:
Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 240W max

Dimensions & Weight:
Dimension: 18" x 10.97" x 7.15" / 457 x 279 x 182mm
Weight: 23 lbs. / 10 kg.

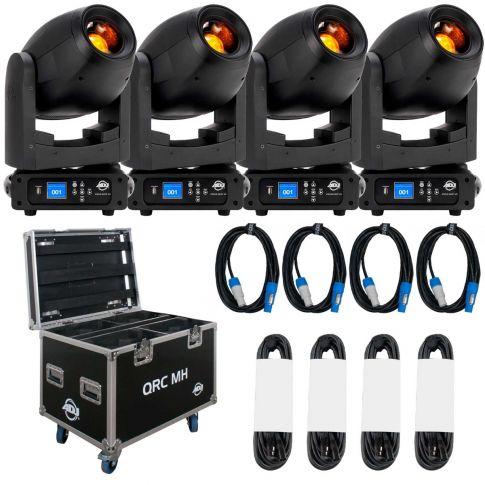

This Package Includes:
(4) American DJ Focus Spot 4Z 200W LED Moving Head Spot Fixtures with Motorized Focus & Motorized Zoom
(4) 3 foot PowerCON power cables
(4) Safety Cables
(4) Omega Brackets
(1) Properly Fitting & Durable Protective Transport Case
(4) 25FT Sure-Fit DMX Connecting Cables
(4) ADJ AV6 3FT Power Link Cables [PLC3]
