ADJ UBL6H 22.50" Linear Wash Light with 12 HEX LEDs & UC IR Remote Control
The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL6H incorporates a lime-infused HEX LED with six (6) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.
ADJ UBL6H 6 x 20W Linear Wash Light Features:
- Linear Color Temperature Control (2,300K to 9,900K.)
- Smooth RGBAL+UV color mixing.
- Horizontal Magnetic Alignment feature (Built-In.)
- Compatible with the ADJ UC-IR24 remote.
- Operates at a distance of up to 32.8 feet (10 meters.)
- RDM Compatible.
Xstatic DMX 3-Pin Terminator [XC-DMX3PTR]
Xstatic's DMX 3-pin DMX terminator Kit is a 110 Ohm DMX terminator.
It is recommended to use a Terminator at the end of any DMX run.
ADJ UBL6H Product Specifications:
Light Source:
6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
Long Life LEDs (Rated at approximately 50,000 hrs.)
17° beam angle
CRI >90
Pixel Pitch: 85.5mm
Control:
Linear Color Temperature Control (2,300K to 9,900K)
OLED Display with 4-buttons
7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
3 Groups x2 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
LED Refresh Rate: 1.9KHz
64 built-in Color Macros
6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
Built-In Microphone for sound trigger
LED pulse and strobe effect
Electronic Dimming: 0-100%
Connections:
Linkable: DMX via 5-pin XLR cable
Locking power In/Out to daisy chain power
Electrical:
Multi-voltage operation: AC 100V-240V 50/60Hz
Power Draw: 26W
Daisy-chain power link (Up to 26 UBL6H's can be linked @120V and up to 50 UBL6H's can be linked @230V)
Dimensions / Weight:
Dimensions (LxWxH): 2.96" x 22.40" x 4.2" (75x568.9x106.7mm)
Weight: 4.41 lbs./ 2kg.
Certifications / IP Rating:
cETLus (Control # 4002034)
CE
FCC
IP20
Environment:
Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

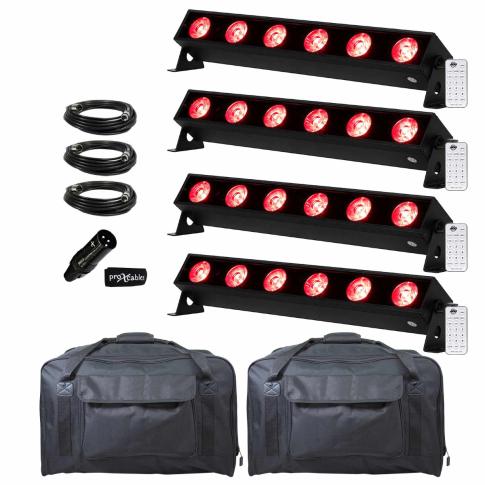

This Package Includes:
(4) ADJ UBL6H 22.50" Linear Wash Lights with 12 HEX LEDs & UC IR Remote Controls
(2) Properly Fitting & Durable Protective Transport Cases
(3) 10FT Sure-Fit DMX Connecting Cables
(1) Xstatic DMX 3-Pin Terminator [XC-DMX3PTR]
Each ADJ UBL6H Box Includes:
(1) ADJ UBL6H Half Meter 6 x 20W Ultra Bright RGBAL-UV HEX LED Linear Wash Light
(1) Indoor Locking Power Cord
(1) UC-IR24
(1) 20° Diffusion Filter
(1) Set of mounting brackets to set on the ground or to mount a clamp to for truss mounting
The XC-DMX3PTR Box Includes:
(1) Xstatic DMX 3-Pin Terminator [XC-DMX3PTR]
