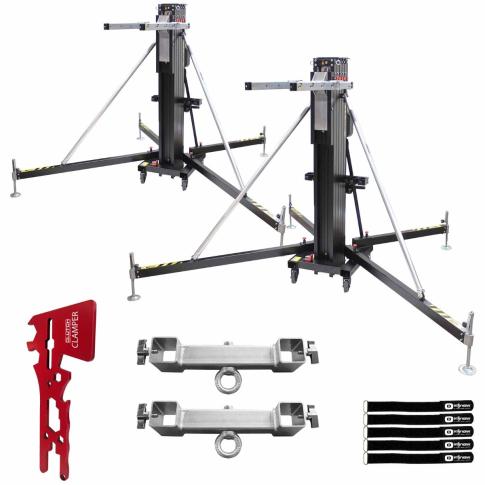

ProX XTF-FT6033 FANTEK Compact 728lb Capacity Front Loading Lifting Towers with Line Array Adapters Duo Package

The ProX XTF-FT6033 FANTEK Lifting Tower is front loading and allows you to raise the load directly from the floor, avoiding any single effort. It is specially designed for a reliable lifting of line array systems of up to 330 kg (727.5 lbs) to a maximum height of 5.95 meters / 19.52 Ft. This product is perfect to fly line array systems, trusses and LED screens. The compact design with castors gives the XTF-FT6033 rigging tower easy handling and maneuverability, reducing storage space, and is the ideal solution for touring, rental or event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.). This Compact model is only 5.64ft (1.72 m) folded height.

These patented dynamic overlap stacking trusses (5 Masts) are manufactured with extruded aluminum and TIG welded by certified welders for maximum safety. They are specially designed to be compact when folded, reducing storage space and making it easier to handle. FANTEK towers use a reinforced steel base with outriggers that support heavy loads and high heights. During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off of the wire rope. Additionally, the DYNSYS is a system designed to guarantee the "health" and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch and, when this is exceeded, the system acts and does not allow to continue the lifting process. The WIREDRIVE is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling. Always secure loads at a locking point and never on the winch alone.

ProX XTF-FT6033 FANTEK Multipurpose 728lb Capacity Lifting Tower Features:

• Design to fly line array systems, trussing and LED screens.
• Made of quality components to ensure maximum safety.
• Raise the load from the floor.
• CE - DGUV V17/18 Certified Compliant.
• XT-FT6033 is Made by Fantek in Valencia Spain.
• Minimum Height - 1.72 meters / 5.64 Feet.
• Max Height - 5.95 meters / 19.52 Feet.
• Max Load - 330 kg / 727.5 lbs.
• Winch - 900 kg / 1984.16 lbs.
• Steel Loading Forks - 600 mm / 23.62 Inches.

ProX XTF-ATF17PA Line Array Adapter features a hanging ring specifically for small/medium line-arrays systems. The adapter is compatible with XTF-FT6033 frontal loading lifting towers with 45mm x 45mm fork section. It is built of steel and has a bolted hanging ring and large thumbscrew positioning locks.

DGUV is a 3rd Party Certification Body and provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality. CE marking is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold/manufactured within the European Economic Area (EEA).

ProX XTF-ATF17PA FANTEK Line Array Adapter Features:

• Design to fly line array systems and LED screens.
• Made of quality components to ensure maximum safety.
• Designed to raise the load from the floor.
• Made by FANTEK in Valencia Spain.
• CE - DGUV Certified Compliant.
