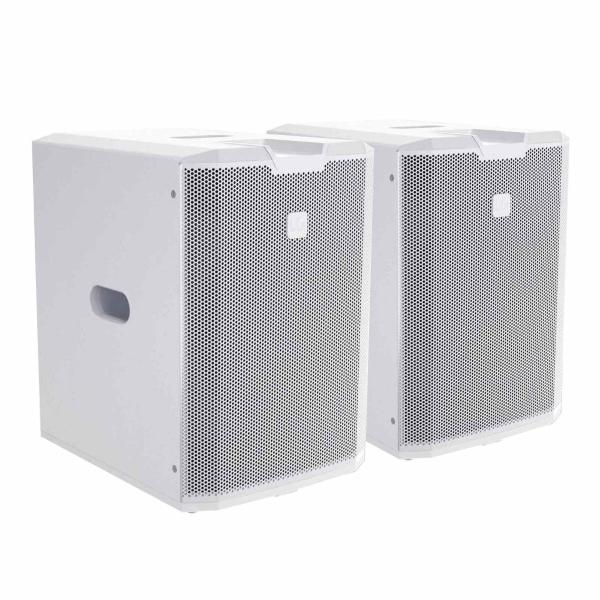

LD Systems MAUI 28 G3 SUB W Powered 12" Subwoofer for MAUI 28 G3 in White 2-Pack
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Crisper and more powerful bass with additional LD MAUI 28 G3 SUB subwoofer. With the MAUI 28 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right into the bass range. What does this mean? Simply position the SUB next to your MAUI 28 G3 facing the rear direction, switch on the Cardioid preset and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI 28 G3 and switch off the Cardioid preset.
Setting up the SUB with your MAUI 28 G3 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to FOLLOWER mode as long as no column is attached. Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage. The MAUI 28 G3 SUB Wfeatures the same design construction as the MAUI 28 G3 W subwoofer and will be the perfect addition to get your Low-End in control.
LD Systems MAUI 28 G3 SUB W 12" Subwoofer - White Features:
- Powered 12" subwoofer with flow-optimised bass-reflex ports.
- 12" custom-designed woofer with deep bass down to 37 Hz.
- Preset for cardioid subwoofer configuration
- DynX DSP (Gen.2) technology for distortion-free sound at maximum volume.
- Automatic set-up detection (MAIN / FOLLOWER.)
- Rugged subwoofer housing made out of polyurea-coated birch plywood.
- Shockproof front grille for ultimate speaker protection.
- Four ergonomic handles for easy handling.
LD Systems MAUI 28 G3 SUB W Product Specifications:
General
Product type: PA subwoofer
Type: Subwoofer
Color: White
Max. SPL (Peak): 127 dB
Frequency response (-10dB): 37 Hz - 200 Hz
Weight: 22.8 kg
Features: Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
Subwoofer
Woofer dimensions: 12"
Woofer dimensions (mm): 305 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 3"
Woofer voice coil (mm): 76.2 mm
Cabinet construction: Bass Reflex
Housing material: 15 mm Multiplex
Cabinet surface: Polyurea
Dimensions Subwoofer (W x H x D): 370 x 527 x 472 mm
Subwoofer weight: 22.8 kg
Amplifier Module (integrated in subwoofer)
Amplifier: Class D
System output (RMS): 1030 W
System output (Peak): 2060 W
Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection
Cooling: Convection
Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
Mains connector: IEC power cable (included)
Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Fuse: T 5AL / 250 V
Power consumption: 400 W
Ambient temperature (operating): 0 - 40 °C
Relative Humidity: < 80% (non-condensing)
Line Inputs: 2
Line Input Connectors: Combo XLR / TRS
Line Outputs: 1 x Sub OUT, 2 x THRU
Line Output Connectors: XLR male
Number of speaker outputs: 1
Loudspeaker Output Connectors: Custom-made multipin
Bluetooth Standard: A2DP
Bluetooth Audio Decoder: AAC, SBC
DSP characteristics
Bit depth AD/DA converter: 24 bit
Sampling frequency: 48 kHz
This Package Includes:
(2) LD Systems MAUI 28 G3 SUB W Powered 12" Subwoofers for MAUI 28 G3 - White
(2) Power cables
(2) User manuals
