(2) LD Systems ICOA 12 A BT 12" Powered Bluetooth PA Loudspeakers with Dual Subwoofers Package


Special Price $3,003.40 Regular Price $3,301.02
Item Backordered

Questions? Call 1-800-355-7746 or Chat below

Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746


I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700


I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimized CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance. Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. 4 aluminum handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

LD Systems ICOA 12 A BT 12" Coaxial Bluetooth Speaker Features:

  • A genuine all-rounder for full-range, satellite and monitor applications.
  • 126 dB max. SPL and 1200 W peak power.
  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent pending.)
  • Horn-loaded woofer.
  • DynX DSP with 4 presets, 3-band EQ and delay function.
  • 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth streaming with the BT model.
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand.
  • 6 x M10 flying points.
  • Shock-resistant front grille for optimal protection of the speaker.
  • 4 aluminum grips with ergonomic, rubber surface.
  • Extensive, optionally available accessories for installation and transport.

Music starts to really groove when you can feel the bass in your body. The ICOA SUB can deliver as much bass as you want - to get the people rocking and entice them to the dance floor. It can even lend a multimedia presentation that special oomph it needs to reach its audience. The ICOA SUB pumps out serious bass and gives you greater headroom and a clearer sound. This is because your subwoofer relieves the main speaker, whose woofers are now less burdened by high-energy bass impulses, resulting in less intermodulation distortion. Even at higher volumes, the sound doesn't get muffled. Voices and instruments stay crystal clear. Thanks to its powerful Class D amplifier with 600-watt RMS or 2400-watt peak output, you have some serious power at your command. The presets of the integrated DynX DSP - which offers crossover frequencies of 80, 100 and 120 Hz - let you finely balance your ICOA SUB perfectly with your system. Signal polarity can also be reversed and the SUB offers a delay line-preset for distances up to 10 meters. When your needs begin to expand as the venues get bigger, your setup can grow along with you. Simply add more ICOA SUBs, which can be operated in parallel, giving you more and more power. You can also take advantage of the cardioid-preset. Simply position the additional subwoofers next to your ICOA SUB facing to the rear and enable the cardioid-preset to get a quieter and controlled low-end at the back while still keeping the punch at the front. The rugged housings made of 18 mm laminated wood can be stacked, while the M20 thread on top lets you mount the main speakers using a distance pole. Transport is simplified by mounting rollers to the rear. Corner protectors guard the edges during setup. To keep the ICOA SUB from slipping out of your hands, its four aluminum grips are covered in rubber. Whether you're a DJ, singer-songwriter, rock or party band, the ICOA SUB produces the perfect bass to complement your live music. Lectures and multimedia presentations also benefit from its clarity and powerful presence, giving you the proper support to amplify emotions in your audience.

Enjoy the freedom of blasting the sound as loud and hard as you want for your audience. The horn-loaded woofer covers the complete bandwidth of sound with rich, deep bass. The choice is all yours: use the coaxial speakers as either column loudspeakers or as monitor boxes - in 12" or 15" format. After all, both the powered and passive loudspeakers in the LD Systems ICOA Series are true all-rounders: their coaxial configuration allows the BEM-optimized CD horn - and the logo - to be easily rotated 90°. The result: you can perfectly position your powered loudspeaker at the right transmission angle. The sound is brilliant and super powerful in all positions, and the design is truly impressive, no matter if installed as a vertical column loudspeaker or horizontal monitor box. Every now and then all you need is a new perspective for greater freedom. Sturdy aluminum handles, the adjustable stand adapter and a wide variety of optional accessories for installation and transport make the powered speakers in this series real experts.

LD Systems ICOA SUB 18 A 18" Subwoofer Features:

  • 18-inch subwoofer for powerful low-end up to 29 Hz.
  • 133 dB max. SPL and 2400 Watt peak power through highly efficient digital Class D power amplifier.
  • Optimized bass reflex ports.
  • DynX DSP with four application presets (three crossover frequencies, cardioid mode.)
  • Switchable signal polarity and adjustable delay line for up to 10 meters.
  • 2 x XLR/TRS "combo jack" inputs and 2 XLR Output.
  • 18 mm rugged plywood housing and heavy-duty grill.
  • 4 Aluminum handles with ergonomic rubber surface.
  • Securely stackable with four stacking-grooves.
  • M20 thread for distance pole.

LD Systems ICOA 12 A BT Product Specifications:
Product typePA loudspeaker
Bluetooth Audio DecoderBluetooth 4.0
Low/mid driver dimensions12"
Woofer size304.8 mm
Woofer magnetFerrite
Woofer brandCustom-made
HornBEM optimized CD Horn
HF driver dimensions1"
HF Driver Size25.4 mm
HF driver magnetFerrite
HF driver brandCustom-made
HF driver voice coil1"
HF Driver Voice Coil25.4 mm
AmplifierClass D
Dispersion (H x V)90 ° x 50 °
RMS300 W
Peak power1200 W
Frequency response50 - 20000 Hz
Crossover frequency kHz2 kHz
Max. SPL (peak)126 dB
Protection circuitsMultiband limiter , over voltage , over-current , thermal overload
Controls2 x gain , On / off switch , Rotary/push encoder
IndicatorsLC display
Mic/ line inputs2
Mic-/ Line Input Connectors6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs1
Line input connectors3.5 mm TRS
Line outputs1
Line output connectorsXLR
Operating voltageSMPS
Power consumption150 W
Ambient temperature ( in operation )    0 - 40 °C
Operating voltage100 V - 240 V AC / 50 - 60 Hz
Relative Humidity< 80 %, not condensing
FuseT4AL 250 V
Cabinet materialPolypropylene
Cabinet constructionBass Reflex
Mounting36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle55 °
Width14.7" (375 mm)
Height25" (635 mm)
Depth15.5" (396 mm)
Weight43.9 (19.95 kg)
Accessories (included)Power cord

LD Systems ICOA SUB 18 A Product Specifications:
Product typePA subwoofer
Low/mid driver dimensions18"
Woofer size457.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil4"
Woofer voice coil (mm)100 mm
AmplifierClass D
RMS600 W
Peak power2400 W
Frequency response (-10dB)  29Hz Preset depending
Max. SPL (peak)133 dB
Protection circuitsExcursion Limiter, over voltage, over-current, Peak Limiter, thermal overload
ControlsPush encoder
IndicatorsLC display
Line inputs2
Line input connectorsXLR/6.3mm jack combo jacks (balanced)
Line outputs2
Line output connectorsXLR
Operating voltage100 - 240 V
Power consumption (max.)675 W
Operating Temperature0 - 40 °C
Relative Humidity< 60% (non-condensing)
Cabinet material18 mm Multiplex
Cabinet surfacetexture paint
Cabinet constructionBass Reflex
Width626 mm
Height672 mm
Depth637 mm
Weight44.3 kg

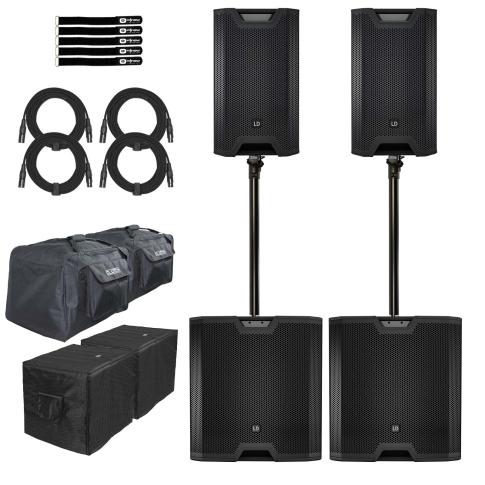

This Package Includes:
(2) LD Systems ICOA 12 A BT 12" Powered Coaxial PA Loudspeakers with Bluetooth
(2) Power cords
(2) Clutch CL-TOTE1200 Universal Medium Speaker Carry Tote Bags
(2) LD Systems ICOA SUB 18 A Powered 18" Bass Reflex PA Subwoofers
(2) LD Systems ICOA SUB 18 PC Padded Protective Covers for ICOA 18" Subwoofers
(2) On-Stage SS7746 Subwoofer Poles with M20 Thread
(4) Clutch 20' Sure-Fit XLR Female to XLR Male Microphone / Speaker Cables
(5) 8" Reusable Hook and Loop Cable Ties
