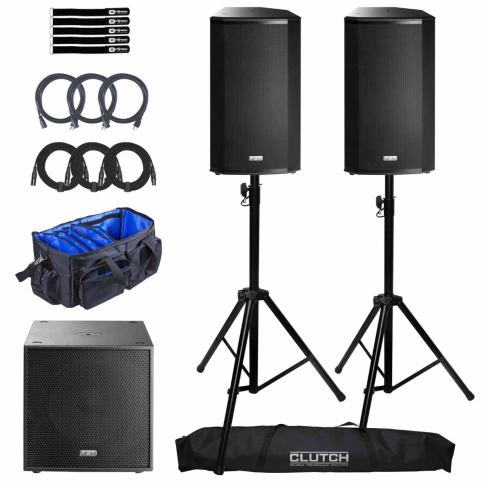

FBT VENTIS 112A Processed 2-Way Active 12" Speakers Pair with Active 15" Subwoofer Package

The VENTIS range by FBT comprises 5 versatile loudspeakers for either portable use or fixed installation. Available in bi-amplified or passive versions, each model was designed to meet the highest standards in both performance and aesthetic appeal. VENTIS 206 can be used as sound reinforcement, as an under-balcony system, as a main source for speech for its high intelligibility or simply as the full-range companion of a subwoofer.

All VENTIS models are equipped with a switching amplification module designed in Italy. The Class D integrated power amplifier for low frequencies supplies 700W RMS. For high frequencies, the amplifier section is Class HAB (200W RMS). A digital signal processor (DSP) is fitted inside and equipped with an intuitive graphical interface; situated on the rear panel, the DSP display shows all the menu choices, which can be edited via a single knob with push-to-select features. Made from birch plywood, they have a profile tilted at 45° for positioning on stage as a monitor, with various anchoring points and the option of being wall-mounted by means of a U-bracket.

FBT VENTIS 112A Processed 2-Way Active 12" Speaker Features:

• 2-way, bi-amplified, bass reflex design.
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF.
• Digital Signal Processor with graphic display.
• 15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing.
• High efficiency switch mode power supply.
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push.
• 320mm (12") LF woofer with 64mm (2.5") voice coil, custom made for FBT.
• 25mm (1") exit throat B&C HF compression driver with 36mm (1.4") voice coil.
• Frequency response from 48Hz to 20 kHz.
• 80°H x 50°V Constant Directivity Rotatable Horn.
• 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8") top-hat.
• Speaker stand socket, two aluminium handles.
• 45° monitor taper.

The FBT SUBLINE 115 SA, 15" bass reflex design subwoofer, is the perfect low-frequency extension and the ideal companion for the FBT MUSE 210LA line array or ground stack applications with optional metal base. The FBT SUBLINE 115 SA meets the following performance criteria: Frequency response of 40Hz to 140Hz, Class D amplifier 700W RMS. The FBT SUBLINE 115 SA provides a DSP with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration. The FBT SUBLINE 115 SA features 0.59" Baltic birch plywood construction covered in a scratch resistant black paint with M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles. The control panel provides stereo XLR in & out, volume control, preset, delay, phase 0°-180°, and 3 status led indicators.

FBT SUBLINE 115 SA Compact Band-Pass 15" Subwoofer Features:

• Bass-reflex design with high SPL and punch.
• 380mm (15") high excursion magnet woofer with 75mm (3") voice coil.
• Frequency response from 40Hz to 140Hz.
• New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D.
• Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration.
• Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators.
• 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing.
• M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles.
