Be the first to review this product
(2) LD Systems ICOA 12 A W 12" Powered White PA Loudspeakers with White Stands & Carry Totes Package
SKU
LDS-ICOA12AWGOPK
Special Price $956.40 Regular Price $1,151.25
Limited Supply - Contact Us
Questions? Call 1-800-355-7746 or Chat below
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimized CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance. The white version with a white grille blends in subtly into any environment and doesn't distract. Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. 4 aluminum handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
Enjoy the freedom of blasting the sound as loud and hard as you want for your audience. The horn-loaded woofer covers the complete bandwidth of sound with rich, deep bass. The choice is all yours: use the coaxial speakers as either column loudspeakers or as monitor boxes - in 12" or 15" format. After all, both the powered and passive loudspeakers in the LD Systems ICOA Series are true all-rounders: their coaxial configuration allows the BEM-optimized CD horn - and the logo - to be easily rotated 90°. The result: you can perfectly position your powered loudspeaker at the right transmission angle. The sound is brilliant and super powerful in all positions, and the design is truly impressive, no matter if installed as a vertical column loudspeaker or horizontal monitor box. Every now and then all you need is a new perspective for greater freedom. Sturdy aluminum handles, the adjustable stand adapter and a wide variety of optional accessories for installation and transport make the powered speakers in this series real experts.
Enjoy the freedom of blasting the sound as loud and hard as you want for your audience. The horn-loaded woofer covers the complete bandwidth of sound with rich, deep bass. The choice is all yours: use the coaxial speakers as either column loudspeakers or as monitor boxes - in 12" or 15" format. After all, both the powered and passive loudspeakers in the LD Systems ICOA Series are true all-rounders: their coaxial configuration allows the BEM-optimized CD horn - and the logo - to be easily rotated 90°. The result: you can perfectly position your powered loudspeaker at the right transmission angle. The sound is brilliant and super powerful in all positions, and the design is truly impressive, no matter if installed as a vertical column loudspeaker or horizontal monitor box. Every now and then all you need is a new perspective for greater freedom. Sturdy aluminum handles, the adjustable stand adapter and a wide variety of optional accessories for installation and transport make the powered speakers in this series real experts.
LD Systems ICOA 12 A W 12" PA Speaker Features:
- A genuine all-rounder for full-range, satellite and monitor applications.
- 126 dB max. SPL and 1200 W peak power.
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent pending.)
- Horn-loaded woofer.
- DynX DSP with 4 presets, 3-band EQ and delay function.
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth streaming with the BT model.
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand.
- 6 x M10 flying points.
- Shock-resistant front grille for optimal protection of the speaker.
- 4 aluminum grips with ergonomic, rubber surface.
- Extensive, optionally available accessories for installation and transport.
LD Systems ICOA 12 A W Product Specifications:
Product type | PA loudspeaker |
Type | Powered |
Color | White (RAL 9003) |
Low/mid driver dimensions | 12 " |
Woofer size | 304.8 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Horn | BEM optimized CD Horn |
HF driver dimensions | 1 " |
HF driver size | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
HF driver voice coil | 1.4 " |
HF driver voice coil | 35 mm |
Amplifier | Class D |
Dispersion (H x V) | 90° x 50° |
RMS | 300 W |
Peak power | 1200 W |
Frequency response | 50 - 20000 Hz |
Crossover frequency kHz | 2 kHz |
Max. SPL (peak) | 126 dB |
Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |
Controls | 2 x gain, On / off switch, Rotary/push encoder |
Indicators | LC display |
Mic/ line inputs | 6.3 mm jack Combination sockets (symmetrical), XLR |
Line inputs | 1 |
Line input connectors | 3.5 mm TRS |
Line outputs | 1 |
Line output connectors | 3.5 mm TRS |
Operating voltage | SMPS |
Power consumption | 150 W |
Ambient temperature ( in operation ) | 0 - 40 °C |
Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
Relative Humidity | < 80 %, not condensing |
Fuse | T4AL 250 V |
Cabinet material | Polypropylene |
Cabinet construction | Bass Reflex |
Mounting | 36mm flange (0°, 5°), 6 x M10 flying points |
Monitor angle | 55 ° |
Width | 375 mm |
Height | 635 mm |
Depth | 396 mm |
Weight | 19.95 kg |
Accessories (included) | Power cord |

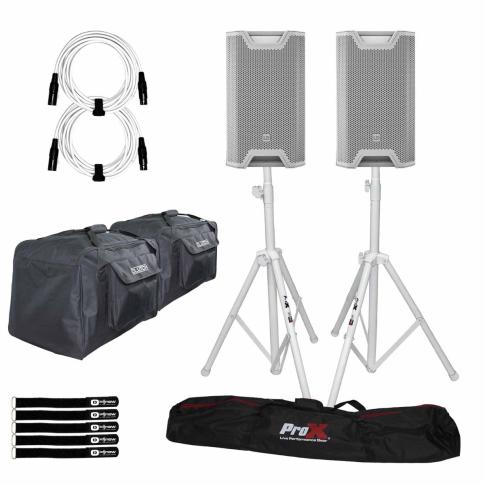

This Package Includes:
(2) LD Systems ICOA 12 A W 12" Powered Coaxial PA Loudspeakers in White(2) Power cords
(2) ProX T-SS28P Cloud Series White 4-7' Heavy Duty All Metal Speaker Tripod Stands
(1) Dual tripod carry case
(2) Clutch CL-TOTE1200 Universal Medium Speaker Carry Tote Bags
(2) Clutch 20' White Sure-Fit XLR Female to XLR Male Microphone / Speaker Cables
(5) 8" Reusable Hook and Loop Cable Ties
