The ADJ Ultra HEX Bar 12 is a versatile LED Linear fixture with 12 x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.
Ultra HEX Bar 12 professional features include: 5 DMX modes (6, 7, 8, 12, & 36 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 7 units together via the fixtures built-in IEC In/Out power connectors.
The Ultra HEX Bar 12 is compatible with the ADJ RFC, easy-to-use, wireless infrared remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
ADJ Ultra Hex Bar 12 Specifications
- Light Source: 12 x 10W Ultra bright HEX (RGBAW + UV: 6-IN-1) color mixing LEDs
- 5 DMX Channel Modes: 6, 7, 8 ,12 or 18 channels
- 6 operational modes: Auto Run, Program Mode, Sound Active, RGBAW + UV Dimmer, Static Color and DMX-512 Mode
- Beam Angle: 40 degrees
- 63 built-in Color Macros
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- Power Draw: 55W
- Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link
- Multi-voltage operation: AC 100V-240V 50/60Hz
- Dimensions (LxWxH): 41.75” x 2.5” x 3.75”/ 1060 x 63 x 90mm
- Weight: 6 lbs./ 2.7 kg.

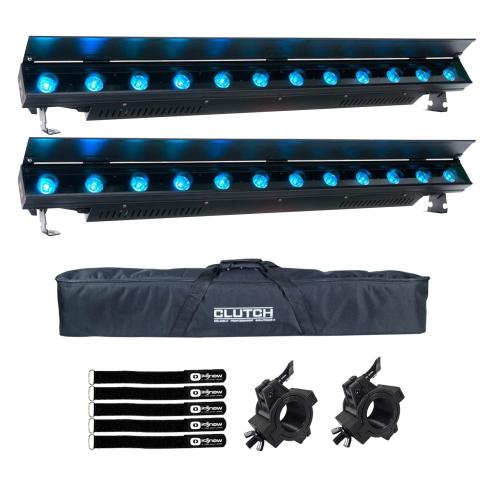

This Package Includes:
(2) ADJ Ultra Hex Bar 12 LED Uplights
(2) Power Cords
(1) Properly Fitting & Durable Protective Transport Gear Bag
(2) Clutch Universal O-Clamps with Snug-Fit 360 Degree Wraps
(5) 8" Reusable Hook and Loop Cable Ties
